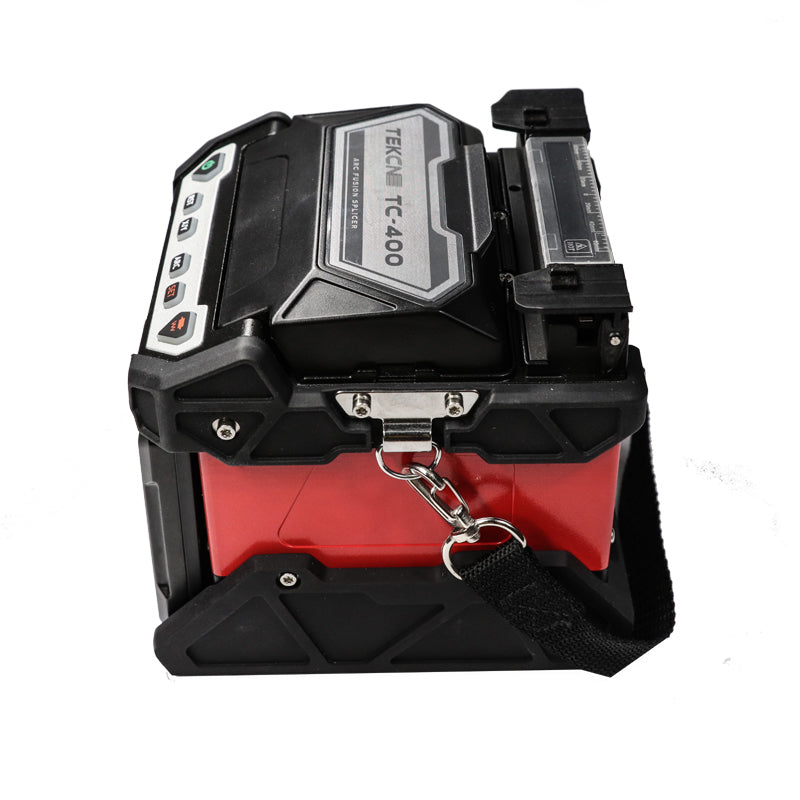

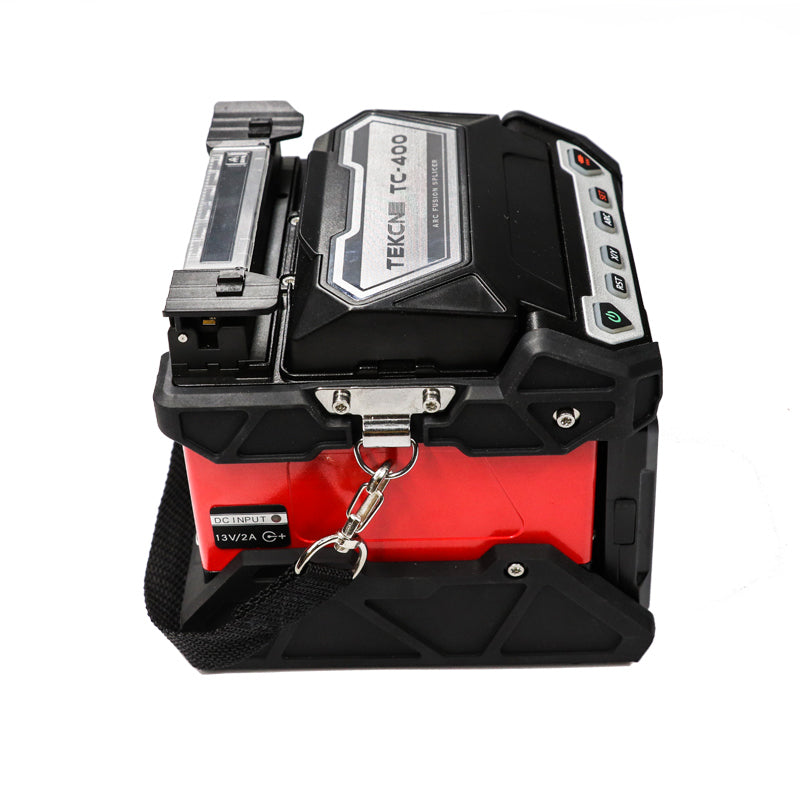

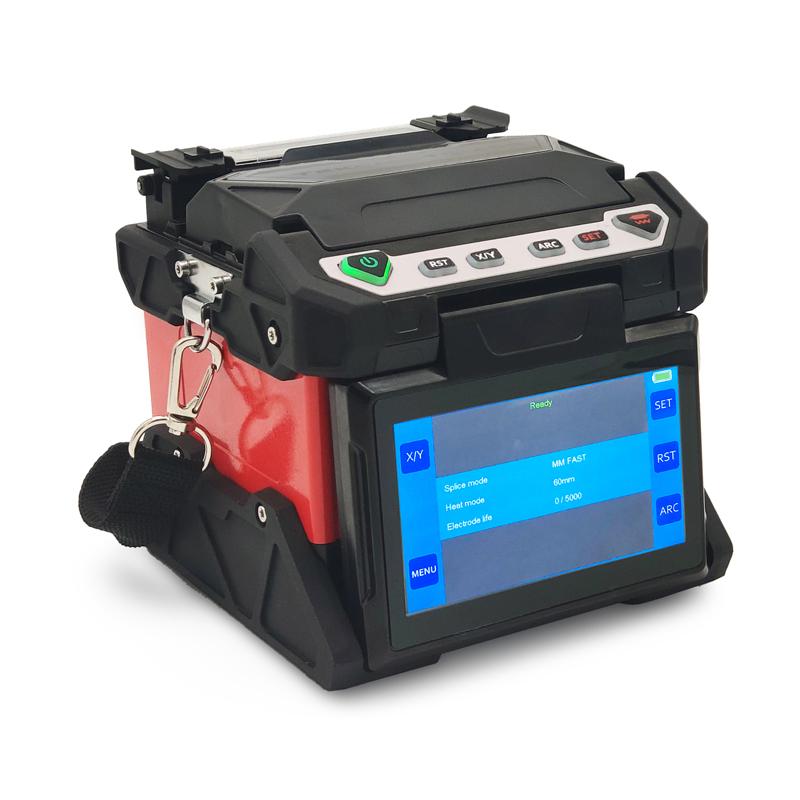

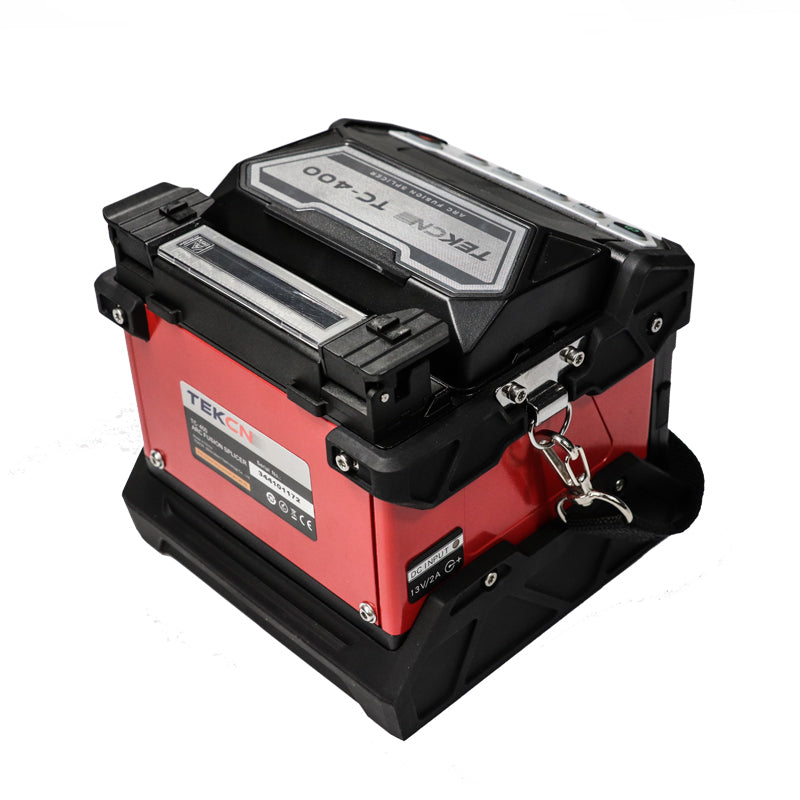

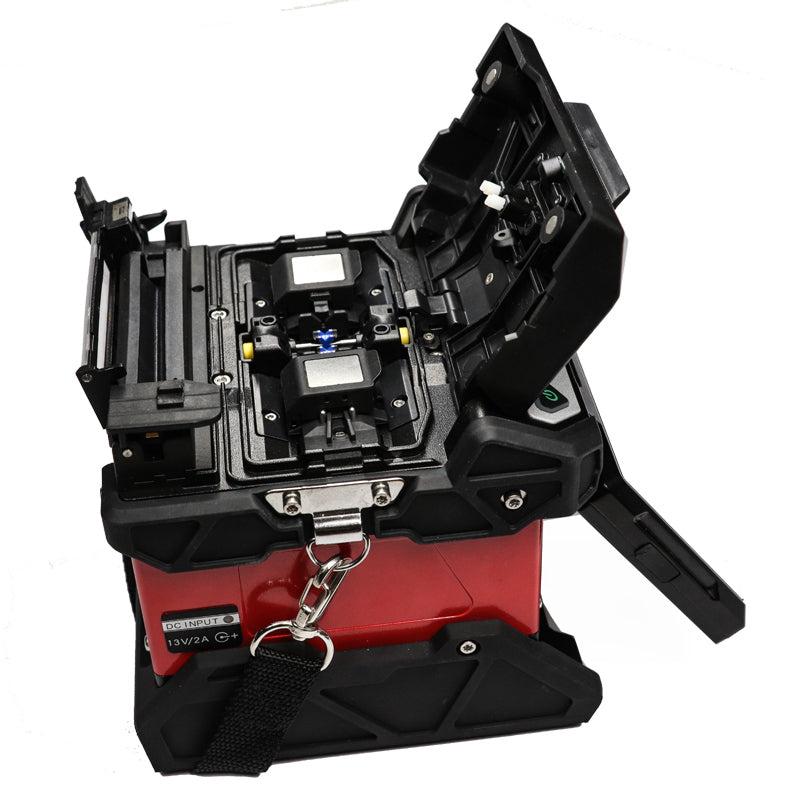

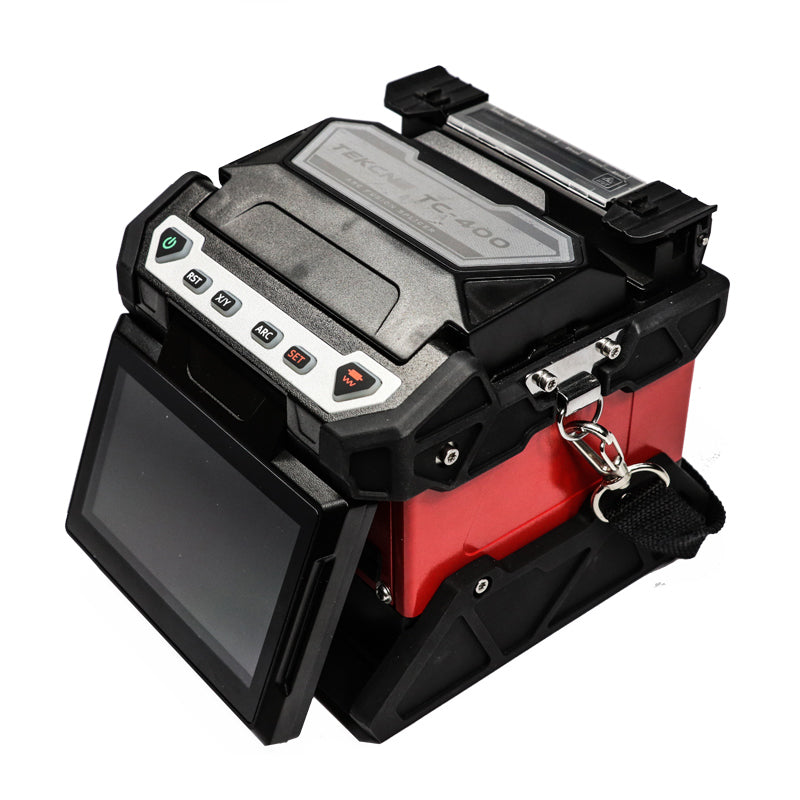

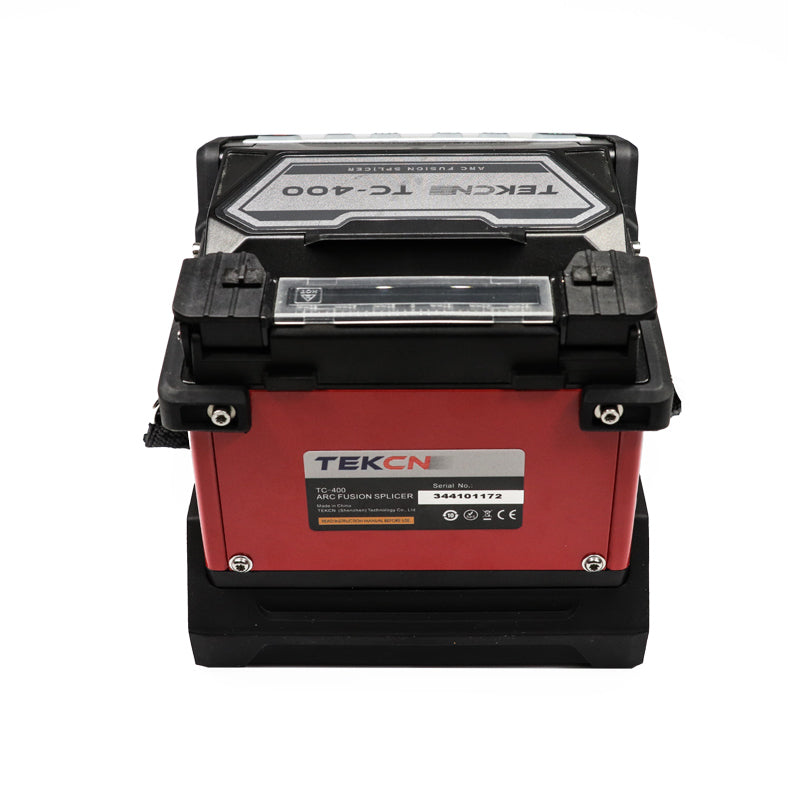

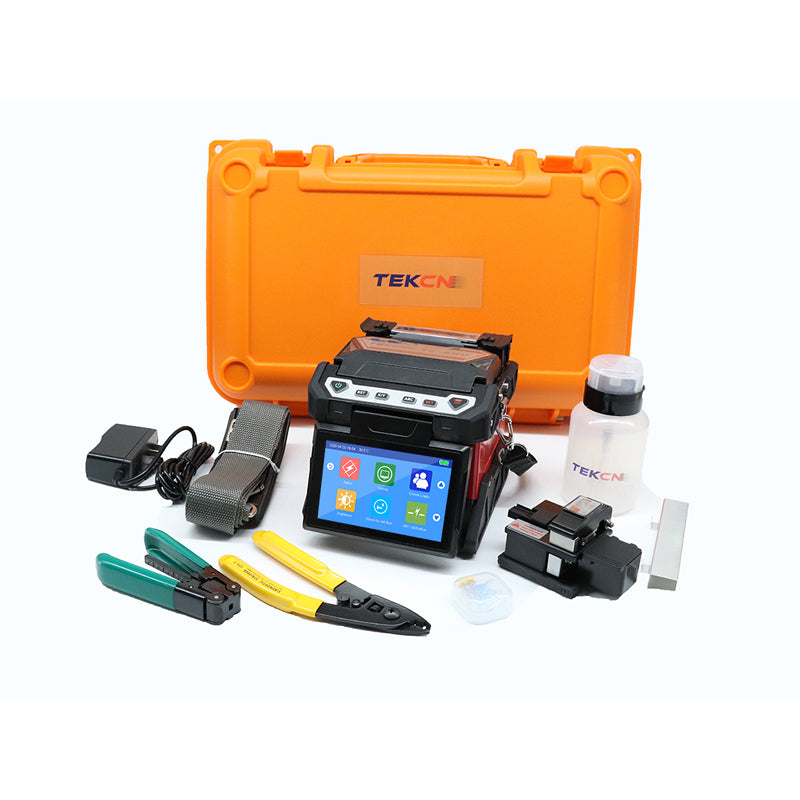

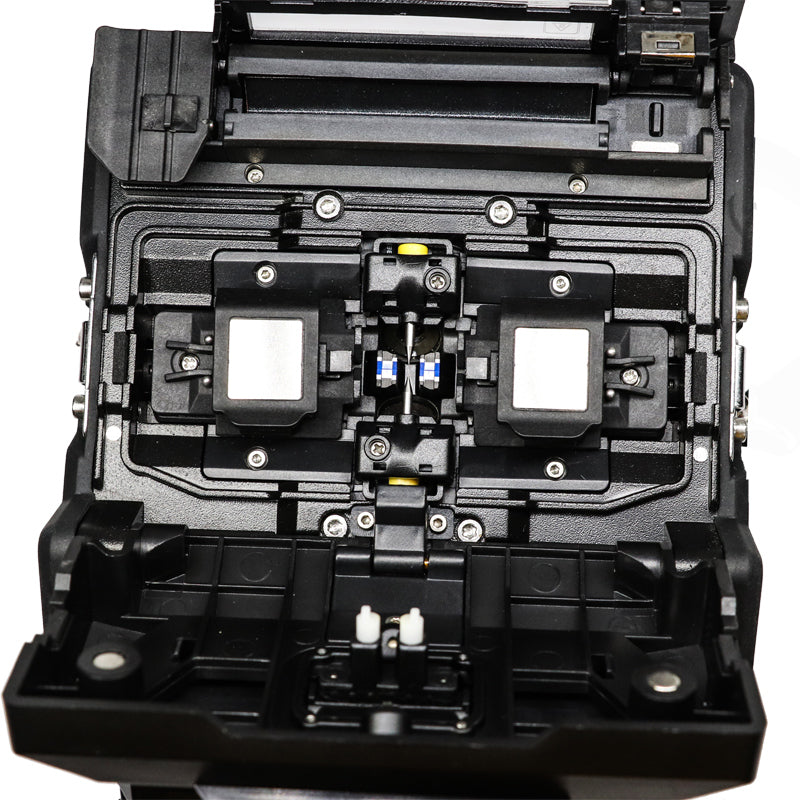

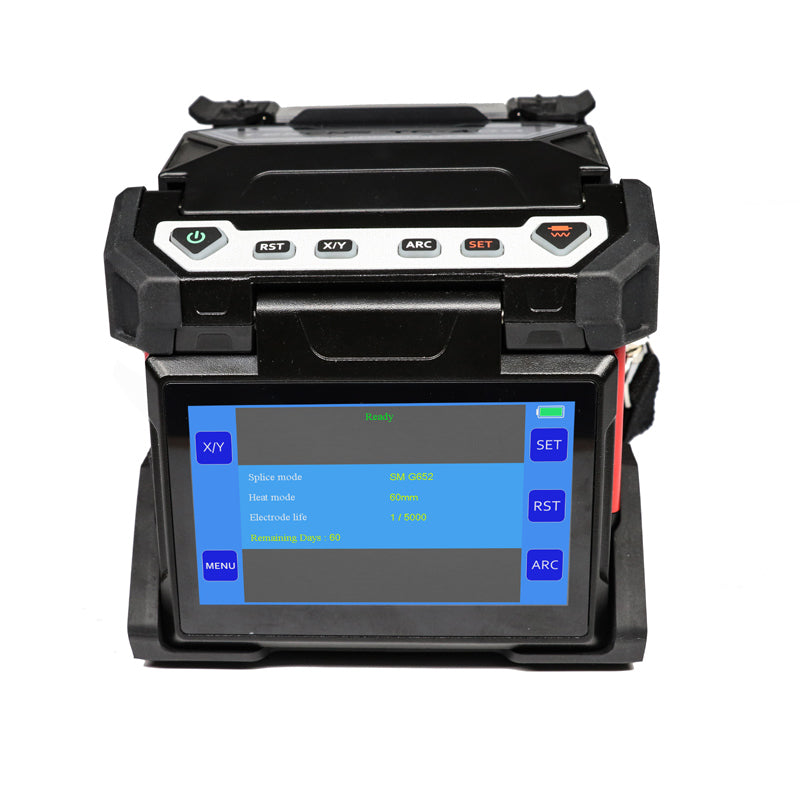

The TEKCN TC-400 Fusion Splicer is engineered for technicians who need a balance of performance, portability, and affordability. With core-to-core alignment technology, it ensures stable, low-loss fiber connections while maintaining a competitive price point.
Designed for FTTH deployment, ISP installation, and fiber maintenance, the TC-400 provides professional-grade performance without the cost of premium Japanese brands.
| Feature | TEKCN TC-400 | Comway A33 | Premium (Japn brand) |
|---|---|---|---|
| Alignment | Core Alignment | PAS Alignment | Core Alignment |
| Splice Time | 7 sec | 5–6 sec | 5 sec |
| Heating Time | 9 sec | 15 sec | 9–14 sec |
| Splice Loss | 0.02 dB | 0.02 dB | 0.01–0.02 dB |
| Battery | 240 cycles | 240+ cycles | 250–300 |
| Price Level | 💲 Low | 💲💲 Medium | 💲💲💲 High |
👉 The TC-400 is the “best value entry-to-professional upgrade” option
Scenario: Small ISP Team
👉 Using TC-400:
The typical splice time is 7 seconds, with a 9-second heating cycle.
Yes, it uses core-to-core alignment technology, providing better accuracy than basic cladding alignment models.
It supports over 240 splice and heat cycles per full charge.
Yes. With its touchscreen interface and automation features, it is easy to use even for new technicians.
Yes, especially for:
Speicifications
|
Fiber alignment |
core to core alignment |
|
Applicable fibers |
Single/SMF(G.652/657), MMF(G.651), DSF (G.653), NZDSF (G.655), BI(G,657) |
|
Cladding dia. |
80-150pm /100-1000pm |
|
Sheath dia. |
8-16mm |
|
Cleave length |
5mm to 16mm with sheath clamp |
|
Splice mode |
Total 100 modes, supports self-defined mode and parameter |
|
Typical splice time |
7 sec. SM FAST |
|
Typical splice loss |
0.02dB(SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS)and 0.02dB(BI) |
|
Return loss |
»60dB |
|
Heating mode |
Max. 20 |
|
Heating time |
9 sec. |
|
Applicable protection sleeve |
10~60mm |
|
Splice result storage |
Last 20,000 splices |
|
Splice image storage |
Max.800 |
|
Viewing methods |
2 axis CMOS camera with 4.73u HD color capacitive touchscreen |
|
Magnification |
Supports X/Yor both X and Y simultaneously, maximum up to 760X magnification |
|
Port |
MicroSD and USB port for software upgrade / data management |
|
Electrode life |
Typical 5000 splices |
|
Battery compacity |
4000mAh battery, more than 240 times splicing and heating; Standard charging time 3 hours (up to 80%electric quantity in 2 hours) |
|
Power supply |
AC100-240V,50/60Hz |
|
Tension test |
2N |
|
Operating condition |
Altitude : Oto 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity :0to 95%RH |
|
Storage condition |
Humidity: 0 to 95%RH Temperature: -10to 80deg C(Battery: -10 to 40deg C) |
|
Size/weight |
133Wx 144Dx 133H (mm)/1.5kg (1.8kg including battery) |
