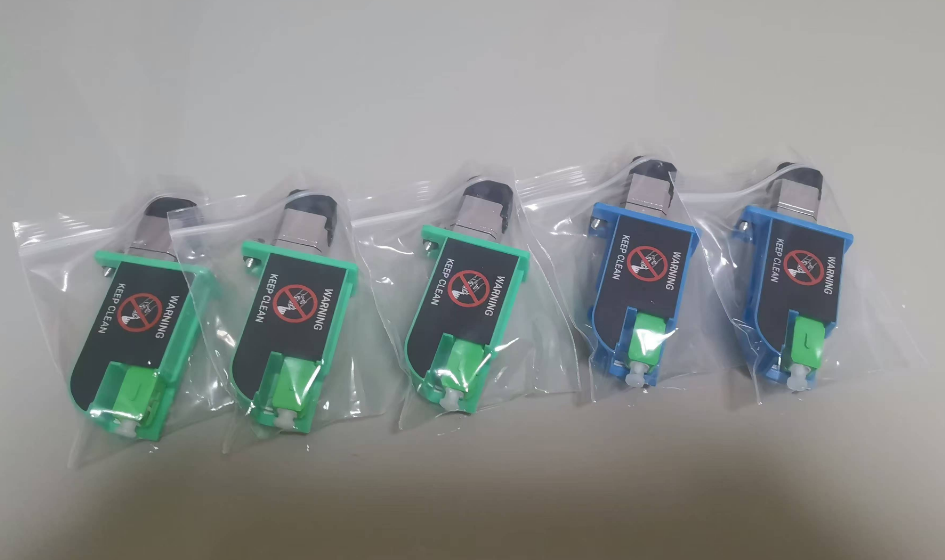

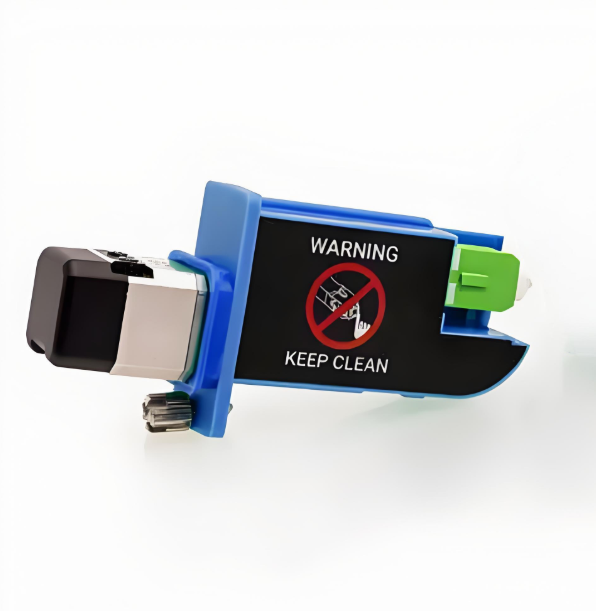

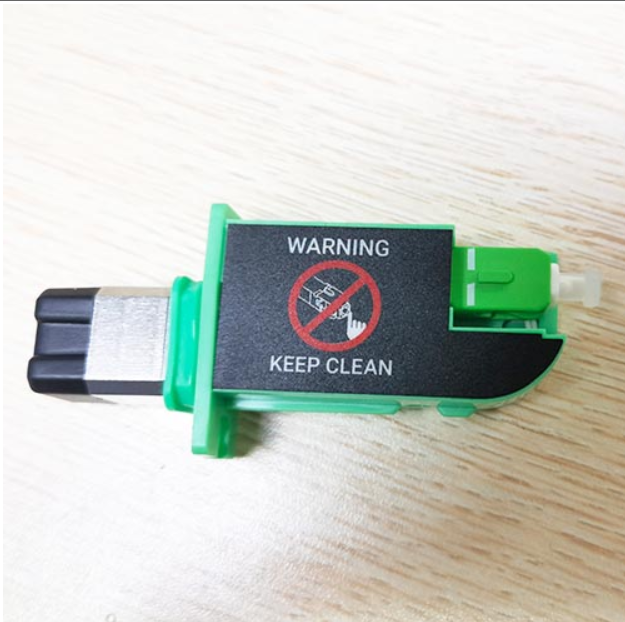

The EXFO GP-3207 and GP-3208 are OEM Swap-Out Connectors for the EXFO MaxTester 700D OTDR series, including the MAX-730D and MAX-715D. Unlike traditional fixed OTDR optical ports, the MaxTester 700D’s Swap-Out connector system allows field technicians to replace the OTDR’s optical connector directly in the field — without sending the unit to a service centre — in seconds.
Advantage: the Swap-Out connector design enables iOLM support for both APC and UPC optical connectors. The internal connector is always APC, and always iOLM-compatible.
Note: UPC Swap-Out connectors will need to be replaced more often than APC Swap-Out connectors.
OX1 Click-Out connectors are NOT compatible with OTDRs. 700D OTDR Swap-Out connectors are NOT compatible with OX1.
Available in four configurations: SC/APC, SC/UPC, FC/APC, and FC/UPC.
| Part Number | Connector Type | Polish Type |
|---|---|---|
| GP-3207 | SC | APC (8° angled) or UPC |
| GP-3208 | FC | APC (8° angled) or UPC |
Please select the correct connector type (SC or FC) and polish type (APC or UPC) to match your fiber network when ordering. If unsure, contact us before ordering.
| Series | Compatible Models |
|---|---|
| EXFO 700D Series OTDRs | MAX-715D, MAX-720D, MAX-730D, FTB-720D, FTB-730D |
The Swap-Out Connector system is specific to the EXFO MaxTester 700D series. It is not compatible with older MAX-715B, MAX-720B, or FTB-series OTDRs, which use the EUI-series adapter system.
| Polish Type | End-Face Angle | Typical Return Loss | Common Applications |
|---|---|---|---|
| APC | 8° angled | >60dB | FTTH / PON networks, CATV, long-haul telecom |
| UPC | 0° flat | >50dB | Enterprise fiber, data centers, telecom OSP |
Important: APC and UPC connectors are not interchangeable. Always match the Swap-Out connector polish type to your fiber network’s connector type.
Q: What is the EXFO Swap-Out Connector?
A: The EXFO Swap-Out Connector (GP-3207 for SC, GP-3208 for FC) is a field-replaceable optical connector module for the EXFO MaxTester 700D OTDR series (MAX-715D, MAX-730D). It allows technicians to replace the OTDR’s optical connector in the field in seconds, without sending the unit to a service centre.
Q: What is the difference between GP-3207 and GP-3208?
A: The GP-3207 is the SC connector version (available in APC or UPC), and the GP-3208 is the FC connector version (available in APC or UPC).
Q: Which EXFO OTDR models are compatible with the Swap-Out Connector?
A: The Swap-Out Connector system is designed for the EXFO MaxTester 700D series: MAX-715D and MAX-730D. It is not compatible with older EXFO OTDR models such as the MAX-715B, MAX-720B, MAX-730, or FTB-series.
Q: Should I choose APC or UPC?
A: Choose APC if your fiber network uses green SC/APC or FC/APC connectors — common in FTTH, PON, and CATV networks. Choose UPC if your network uses blue SC/UPC or FC/UPC connectors. APC and UPC connectors are not interchangeable.
Q: Can I replace the Swap-Out Connector myself in the field?
A: Yes. Simply twist off the worn connector and snap in the new one. No calibration required.
Q: How do I know when to replace the Swap-Out Connector?
A: The EXFO MaxTester 700D includes an onboard connector health diagnostic tool that alerts you when replacement is needed.
Q: How many connectors come in one package?
A: Each package contains one (1) Swap-Out Connector. For bulk or B2B orders, contact us at info@cpostore.com for volume pricing.
