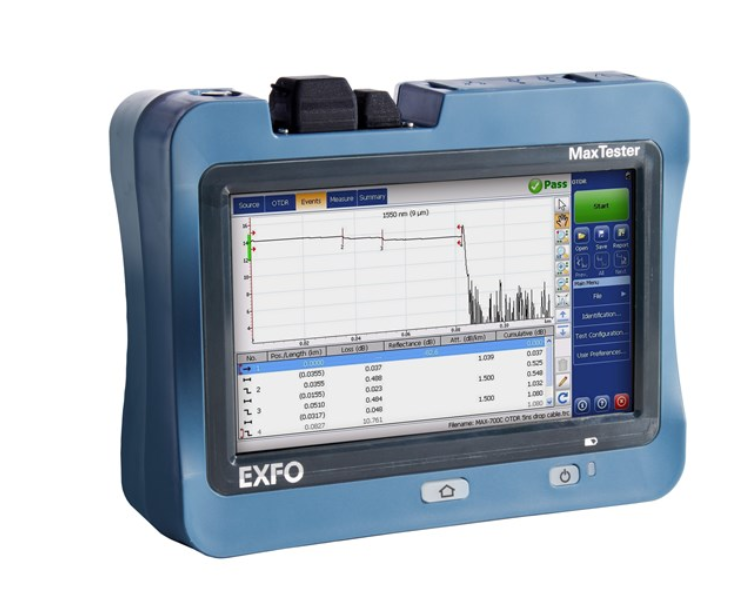

EXFO MaxTester 730C (MAX-730C-SM2) PON OTDR | 39dB, 0.6m EDZ, 1x128 Splitter, 7" Touch

EXFO MaxTester 730C (MAX-730C-SM2) — The Gold Standard PON OTDR for FTTH Testing

The EXFO MaxTester 730C (MAX-730C-SM2) is the industry's leading handheld PON OTDR, engineered specifically for end-to-end FTTH/PON network characterization. With the shortest PON dead zone available, the ability to test through 1×128 optical splitters, and a 39dB dynamic range covering up to 100km, the MAX-730C sets the benchmark for PON network testing accuracy and efficiency.

🔑 Key Features

• Industry-Shortest PON Dead Zone: EDZ 0.6m — Detect events immediately after connectors and splitters
• Tests Through 1×128 PON Splitters — Full end-to-end FTTH link characterization without disconnecting subscribers
• 39dB Dynamic Range — Test access networks and metro links up to 100km
• 7-Inch Outdoor-Enhanced Touchscreen — Clearly visible in direct sunlight
• 12-Hour Battery Autonomy — Full-day field testing without recharging
• Live Fiber Troubleshooting — Test active networks without service interruption
• Rugged Field Design — Built for demanding outdoor environments
• OTDR Software Included
• Available: SC/APC or SC/UPC connector

📐 Technical Specifications

• Model: EXFO MaxTester 730C / MAX-730C-SM2
• Dynamic Range: 39/38/39 dB
• Event Dead Zone (EDZ): 0.6m
• Attenuation Dead Zone (ADZ): 2.5m
• Max Test Distance: ~100km
• PON Splitter Support: Up to 1×128
• Display: 7-inch outdoor-enhanced touchscreen
• Battery Life: 12 hours
• Applications: FTTx/PON, P2P access, metro links, live fiber
• MPN: Exfo-MAX-730C-SM2-OTDR

🏗️ Ideal Applications

FTTx/PON testing through splitters (up to 1×128) · Point-to-point access network testing · Metro link characterization (up to 100km) · Live fiber troubleshooting · FTTH network acceptance and commissioning

💡 Why the EXFO MAX-730C is the PON Technician's First Choice

No other handheld OTDR matches the MAX-730C's combination of shortest PON dead zone, deepest splitter penetration (1×128), and longest test range — making it the definitive tool for FTTH/PON network deployment and maintenance worldwide.

✅ FAQ

Q1: What makes the EXFO MAX-730C the best OTDR for PON testing?
A: The MAX-730C offers the industry's shortest PON event dead zone (0.6m), the ability
to test through 1×128 optical splitters, and a 39dB dynamic range — capabilities
specifically optimized for FTTH/PON network characterization that generic OTDRs cannot match.

Q2: Can the EXFO MAX-730C test through PON splitters without disconnecting subscribers?
A: Yes. The MAX-730C is designed to test through PON splitters up to 1×128 for
end-to-end FTTH link characterization, and supports live fiber troubleshooting without
interrupting active subscriber services.

Q3: What is the maximum test distance of the MAX-730C?
A: With a 39dB dynamic range, the MAX-730C can characterize fiber links up to
approximately 100km, covering both FTTH access networks and metro-range point-to-point links.

Q4: What does EDZ 0.6m mean and why does it matter for PON testing?
A: EDZ (Event Dead Zone) of 0.6m means the OTDR can detect a new event just 0.6 meters
after a reflective event like a connector. In dense PON networks with closely spaced
splitters and connectors, this shortest-available dead zone is critical for accurate
fault location.

Q5: Is the EXFO MAX-730C screen readable in outdoor sunlight?
A: Yes. The 7-inch outdoor-enhanced touchscreen is specifically designed for high
visibility in direct sunlight — essential for field technicians working outdoors.

Q6: What connector options are available for the MAX-730C-SM2?
A: The MAX-730C-SM2 is available with SC/APC or SC/UPC connectors. Select your
preferred option when ordering.

Q7: How long does the battery last on the EXFO MAX-730C?
A: The MAX-730C provides 12 hours of continuous operation on a single charge,
sufficient for a full day of field testing.
