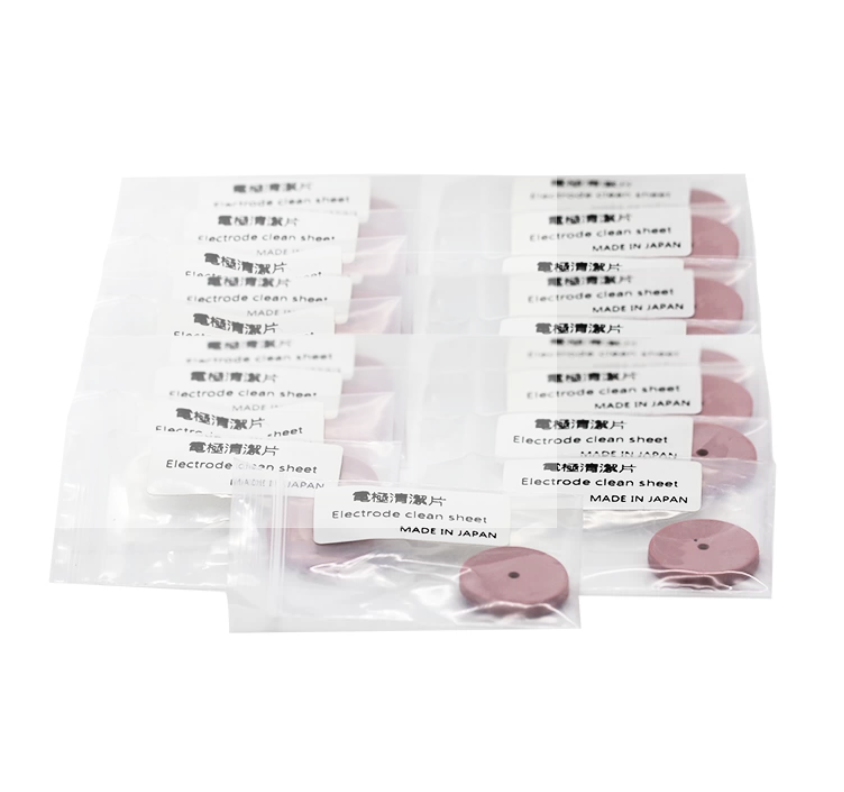

Fusion Splicer Electrode Cleaning Sheet – FC-02 Electrode Polishing Pad

FC-02 Fusion Splicer Electrode Cleaning Sheet

The FC-02 Electrode Cleaning Sheet is a professional-grade polishing pad designed specifically for optical fiber fusion splicer electrodes. It removes oxidation buildup from electrode tips, restoring discharge performance and extending electrode service life by 1 to 2 times.

Key Features

• Universal compatibility – fits all brands and types of fusion splicer electrode rods
• Effective oxidation removal – polishes electrode tips to restore clean discharge arc
• Extends electrode lifespan – reduces replacement frequency and lowers maintenance costs
• Compact & field-ready – easy to carry and use on-site

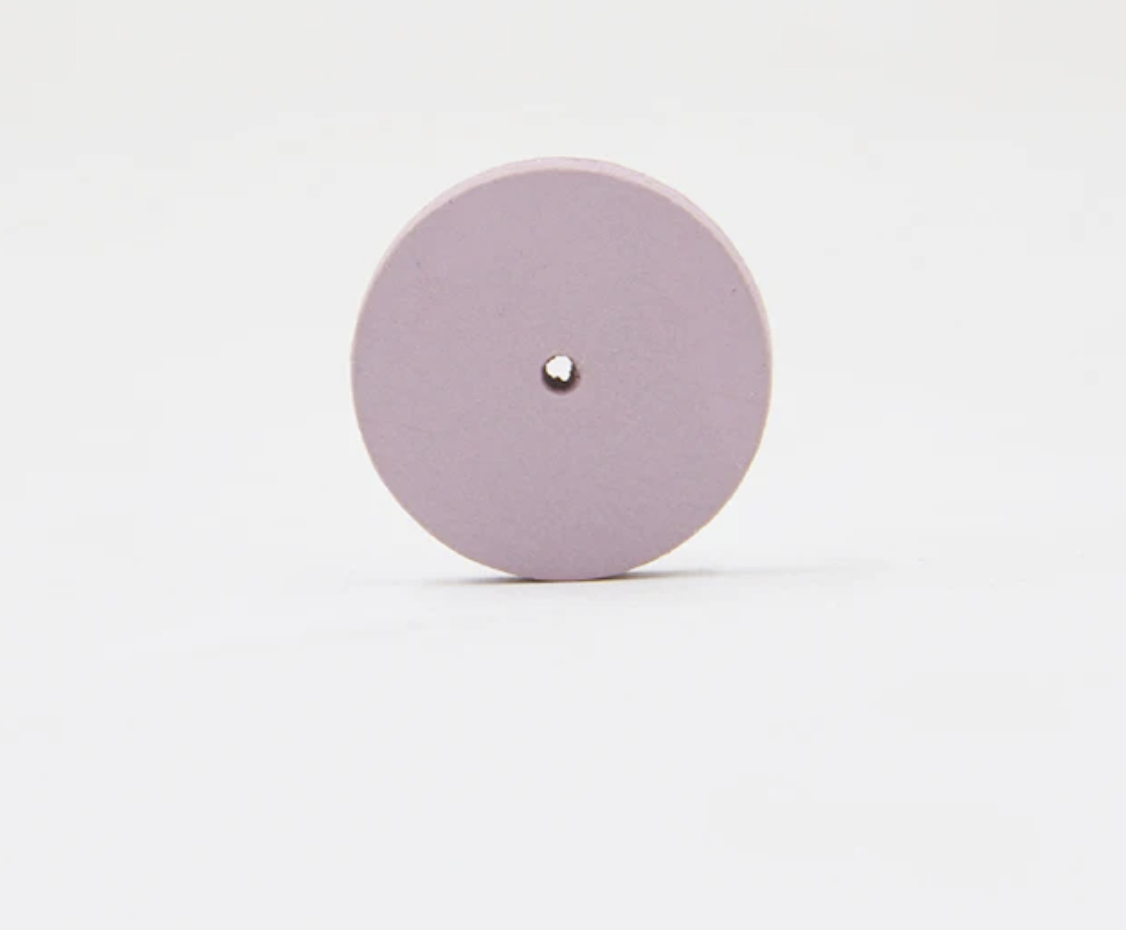

Specifications

• Model: FC-02
• Color: Pink
• Diameter: 22 mm
• Inner hole: 1.6 mm
• Thickness: 3 mm
• Compatibility: All fusion splicer electrode types


How to Use

1. Surface polishing method: Place the cleaning sheet flat. Gently rub the electrode tip in a circular motion along one direction. Do not press the tip into the pad to avoid bending.

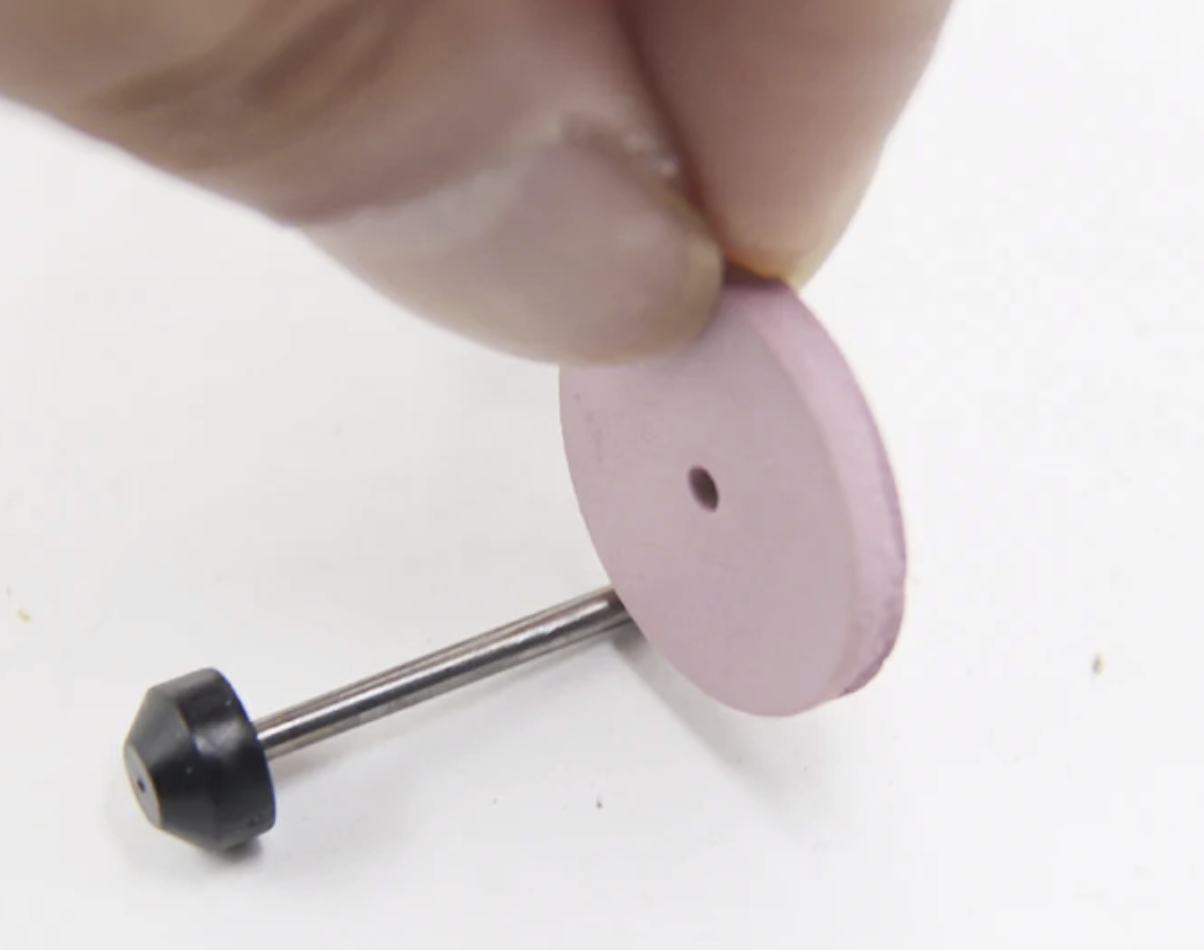

2. Hole insertion method: Insert the electrode rod into the center hole of the cleaning sheet and rotate several times to clean the rod surface.

Compatible With

Suitable for fusion splicers from Fujikura, Sumitomo, COMWAY,JETFIBER,TEKCN,Furukawa, INNO, Fitel, DVP, Fibmax, and other major brands. Ideal for FTTH installation, backbone fiber splicing, and data center cabling projects.

Frequently Asked Questions

How often should I clean my fusion splicer electrodes?
It is recommended to clean electrodes every 1,000–3,000 splices, or whenever splice loss increases unexpectedly.

Can this replace electrode replacement?
Yes, regular cleaning with the FC-02 pad can significantly delay the need for electrode replacement, saving cost over time.

Is this compatible with my splicer brand?
The FC-02 is designed to be universally compatible with all standard fusion splicer electrode rods regardless of brand.
