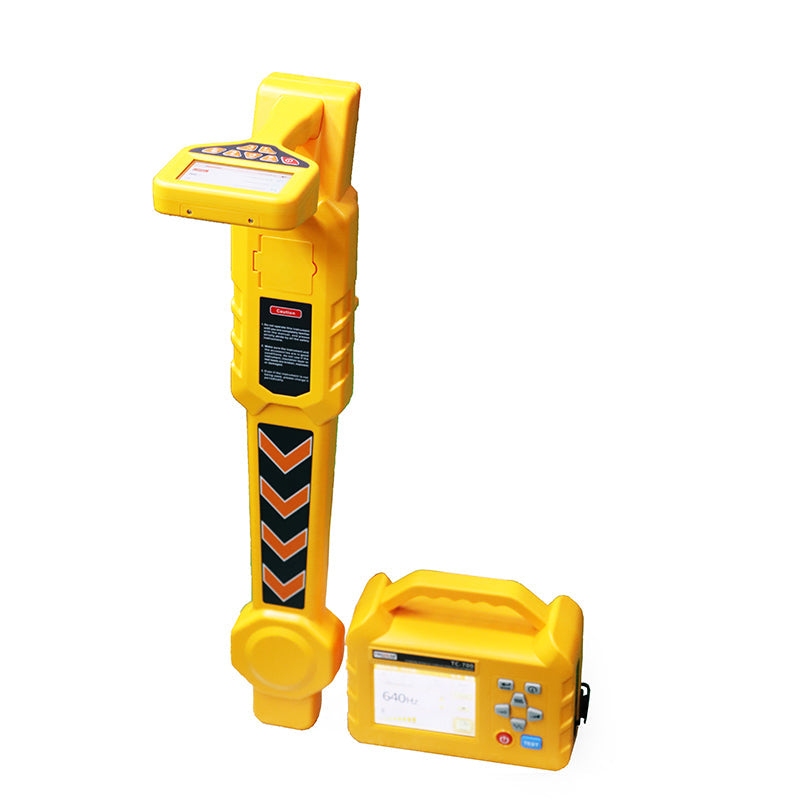

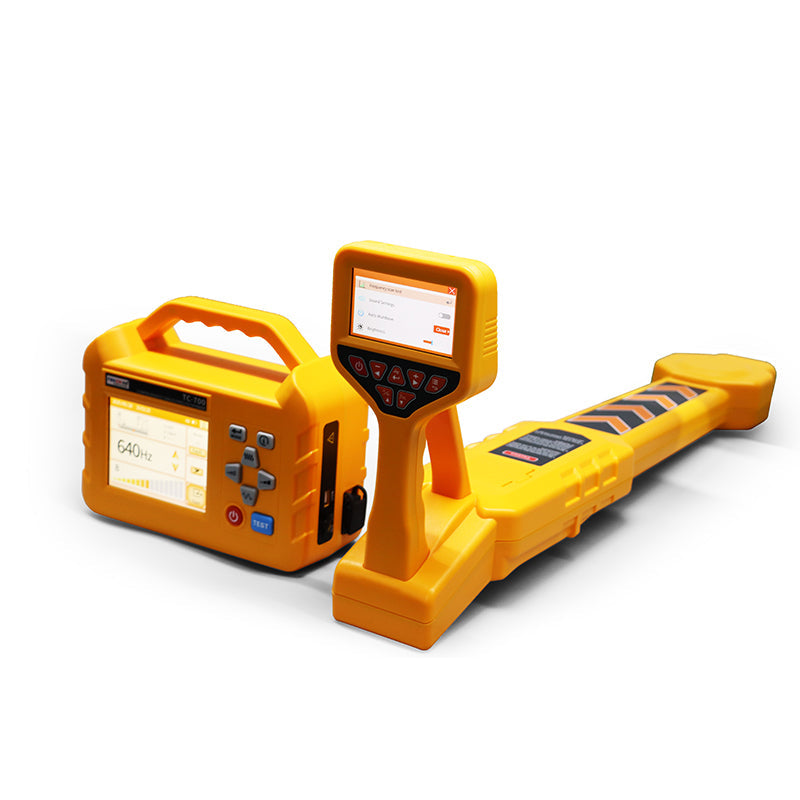

TC-700 Underground Pipeline Detector | Precision Cable and Pipe Locator, Buried Utility Path & Depth Tracing Instrument

TC-700 — Professional Multi-Frequency Underground Cable & Pipeline Locator

The TC-700 is a high-precision multi-functional underground utility locating system designed for professional cable and pipeline detection. With 31 selectable signal frequencies, intelligent SS phase signal identification, and a maximum detection depth of 20 meters, the TC-700 gives utility contractors, telecom engineers, and municipal workers the accuracy and confidence to locate buried cables, pipelines, and fiber routes without costly excavation guesswork.

🔑 Key Features

• 31 Selectable Signal Frequencies — Optimized detection for different utility types and soil conditions
• Maximum Detection Depth: 20 Meters — Locates deeply buried utilities
• Intelligent SS Phase Signal Identification — Accurately distinguishes target utility from interference
• Real-Time Signal Strength Display — Precise path tracing and depth measurement
• Directional Arrow Guidance — Intuitive navigation to buried utility location
• Electronic Compass Positioning — Accurate directional orientation in the field
• Backlit LCD Display — Clear readings in low-light and nighttime conditions
• IP-Rated: Dustproof & Weatherproof — Built for outdoor field use
• Lightweight Portable Design — Transmitter & receiver system
• Cable Ground Fault Location — Identify and pinpoint cable faults

📐 Technical Specifications

• Signal Frequencies: 31 selectable options
• Max Detection Depth: 20 meters
• Signal Identification: Intelligent SS phase
• Display: Backlit LCD
• Navigation: Directional arrow + electronic compass
• Protection: IP-rated dustproof & weatherproof
• System: Transmitter + Receiver

🏗️ Ideal Applications

Power cable route tracing · Communication and fiber optic cable location · Municipal water supply and drainage pipeline detection · Underground natural gas and oil pipeline tracing · Cable ground fault troubleshooting · Buried utility depth measurement · Cable distinguishing and line management

FAQ

Q1: What types of underground utilities can the TC-700 locate?
A: The TC-700 locates buried metal power cables, communication cables, fiber optic
cable conduits, water supply and drainage pipelines, natural gas pipelines, oil
pipelines, and can identify cable ground faults.

Q2: What is the maximum detection depth of the TC-700?
A: The TC-700 can detect buried utilities at depths of up to 20 meters, making it
suitable for locating deeply buried infrastructure in urban and industrial environments.

Q3: Why does the TC-700 have 31 signal frequencies?
A: Different frequencies penetrate soil differently and interact differently with
various utility materials. Having 31 selectable frequencies allows the operator to
choose the optimal frequency for the specific utility type, soil condition, and
depth — maximizing detection accuracy and minimizing interference.

Q4: What is SS phase signal identification?
A: Intelligent SS (Selective Signal) phase identification is an advanced signal
processing technology that distinguishes the target utility's signal from background
interference and adjacent utilities — significantly improving location accuracy in
congested underground environments.

Q5: Can the TC-700 locate fiber optic cables?
A: The TC-700 locates fiber optic cables via their metallic conduit, armor, or
messenger wire. It cannot directly detect non-metallic fiber cables without a
metallic tracer element.

Q6: Is the TC-700 weatherproof for outdoor use?
A: Yes. The TC-700 is IP-rated for dustproof and weatherproof operation, making
it suitable for outdoor field use in various weather conditions.

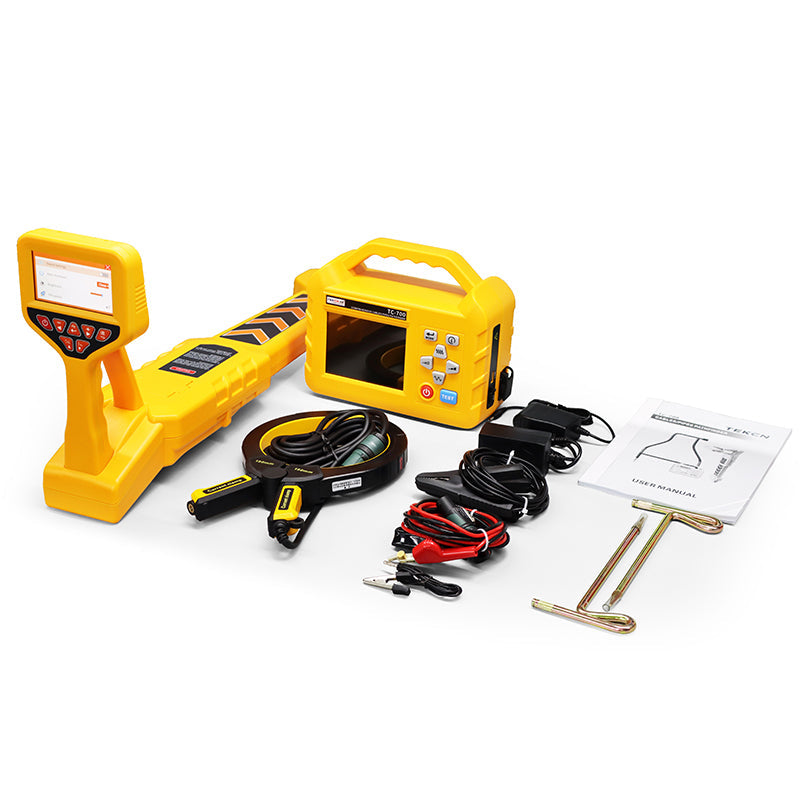

Q7: What does the TC-700 system include?
A: The TC-700 is a complete system including a signal transmitter and receiver
unit, enabling both active signal injection and passive detection modes for
comprehensive underground utility locating.

Q8: What warranty period does TC-700 have?
