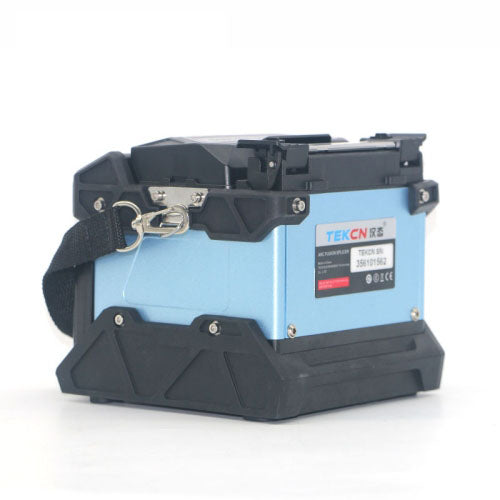

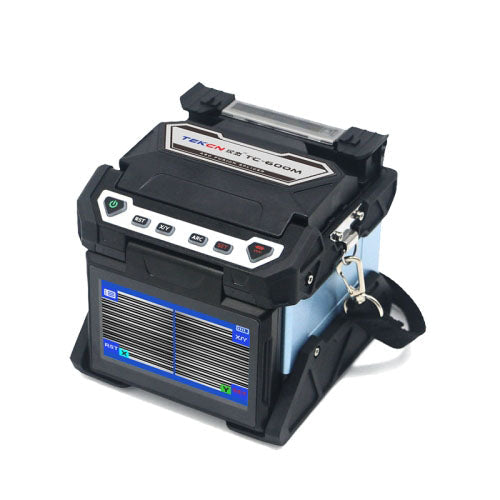

The TEKCN TC-600M is a professional 2-12 core ribbon fusion splicer designed for high-density fiber optic networks, telecom backbone deployment, FTTH projects, and data center cabling. Featuring high-precision V-groove alignment, stable low splice loss, and rugged field performance, TC-600M provides a cost-effective ribbon splicing solution for fiber contractors, ISPs, and telecom engineers.
✅ Supports 2-12 core ribbon fiber splicing
✅ High precision fixed V-groove alignment system
✅ Fast 16-second splicing and 35-second heating
✅ Stable low splice loss performance
✅ Rugged design for outdoor fiber projects
✅ Ideal for FTTH, telecom backbone, and data centers
✅ Large capacity battery supports 120 splice & heat cycles
✅ Cost-effective alternative to expensive ribbon splicers
The TC-600M ribbon fusion splicer is engineered for high-efficiency mass fusion splicing applications where speed, precision, and reliability are critical. It is widely used in telecom construction, backbone fiber deployment, metro networks, and high-density optical fiber installation projects worldwide.
Supports mass fusion splicing for 2 to 12 core ribbon fibers, greatly improving installation efficiency compared with single fiber splicing.

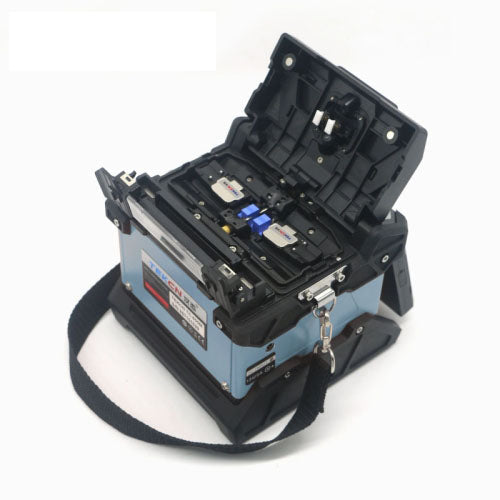

The high-precision fixed V-groove alignment system ensures accurate fiber positioning and stable low splice loss performance.
Optimized for high-volume fiber optic deployment projects where productivity matters.
Designed for harsh outdoor environments with excellent resistance to:
Suitable for telecom field engineers and fiber optic contractors.
5400mAh lithium battery supports more than 120 continuous splice and heating cycles, reducing downtime during field operations.
The TEKCN TC-600M ribbon fusion splicer is ideal for:
Industry discussions also note that ribbon fusion splicers are especially valuable for high-count fiber work where mass splicing significantly improves efficiency.
| Feature | TC-600M | Fujikura 90R |
|---|---|---|
| Fiber Count | 2-12 Core | 1-12 Core |
| Alignment | Fixed V-Groove | PAS/Core Alignment |
| Splicing Time | 16s | 11s |
| Heating Time | 35s | 30s |
| Battery Cycles | 120 Times | 230 Times |
| Application | FTTH / ISP / Data Center | Carrier Backbone |
| Price Level | Cost-effective | Premium |
| Best For | Contractors & ISPs | Telecom Carriers |
For many fiber contractors and regional ISPs, the TC-600M offers an excellent balance between performance and investment cost.
TC-600M ribbon machine is the first Chinese brand that has won the ribbon fiber fusion splicer bid in China telecom.
High electordes discharge control
Button+touch designed Easy to operate
ID electrodes
Designed for use in harsh environments
ACCOMPLISHMENTS
Real core to core testing Automatically identify fiber types.
Specification:
|
Size |
133x144x133(mm) |
| Fiber Type |
Single fiber & 2 to 12 cores ribbon fiber |
| Fiber Holder | Standard kit with 8 cores and 12 cores fiber holder, 1/2/4/6 cores fiber holder is option |
| Applicable Fiber | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657) |
| Fiber alignment | High-precision cladding alignment |
| Fiber diameter | Cladding diameter: 125 (μm), Coating(single) diameter: 160μm-3mm, ribbon 250μm-400μm |
| Cleave Length |
250μm coating diameter 9-9.5mm |
| Splice mode | Total 100 modes, support self-defined modes and parameters |
| Splicing time | 16s (SM Fast) |
| Heating mode | Total 20 modes, support self-defined modes and parameters |
| Heating time | 35s |
|
Application protection sleeve |
25-60mm |
| Splice image storage | Max. 800 (Automatic Loop Storage) |
| Splice result storage | Max. 10000 (Automatic Loop Storage) |
| Average splicing loss | SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/NZDS: 0.08dB, BI 0.05dB ( ITU-T standard) |
| Return loss | ＞60dB |
| Fiber tensile test force | 2N |
| Display | 4.3 inch 800x480 pixels high resolution display, with touch screen |
| Visual system | X and Y dual view display on the same screen; X or Y single view independent display at 24x magnification |
| Connection port | MicroSD and high speed USB port |
| Electrodes life | Typical 2000 splices |
| Power supply | AC100-240V, 50/60Hz |
| Battery | 5400mAh high-capacity battery, supporting continuous splicing and heating for more than 120 times; Standard charging time of 4 hours (3 hours to charge to 80% ) |
| Operation condition |
Altitude: 0-3800m, Temperature: -20 to 50℃ Humidity: 0-95%RH, Max. wind 15m/sec |
| Storage condition |
Temperature: -40 to 80℃ (Battery: -10 to 40℃ ) Humidity: 0-95%RH |
