TEKCN TC-600 6-Motor Core Alignment Fusion Splicer | 760X, GPS, Anti-Counterfeit Electrodes

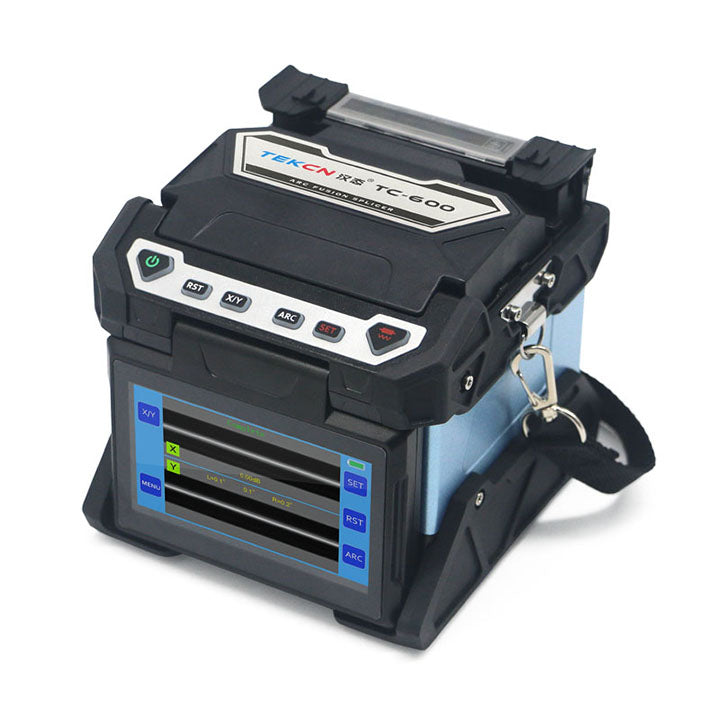

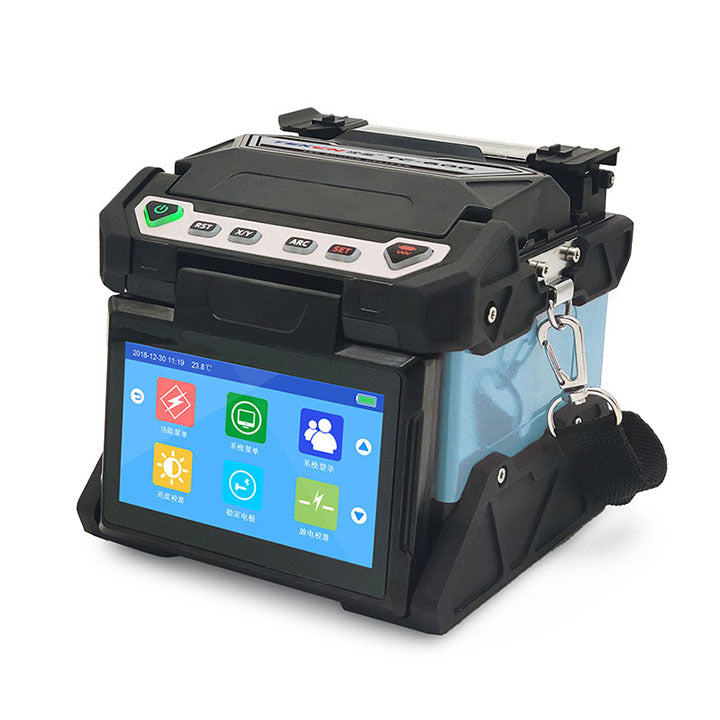

TEKCN TC-600 6-Motor Core Alignment Fusion Splicer – Precision Upgraded from the TC-400

The TEKCN TC-600 takes everything that makes the TC-400 a great value splicer and upgrades the most critical component: the alignment system. Where the TC-400 uses PAS (Profile Alignment System), the TC-600 employs a full 6-motor core alignment mechanism — the same technology used in premium-tier splicers — for more precise, more consistent fiber alignment across a wider range of fiber conditions. If you’re working on projects where splice loss consistency matters most, the TC-600 is the TEKCN to choose.

Why Choose the TEKCN TC-600?

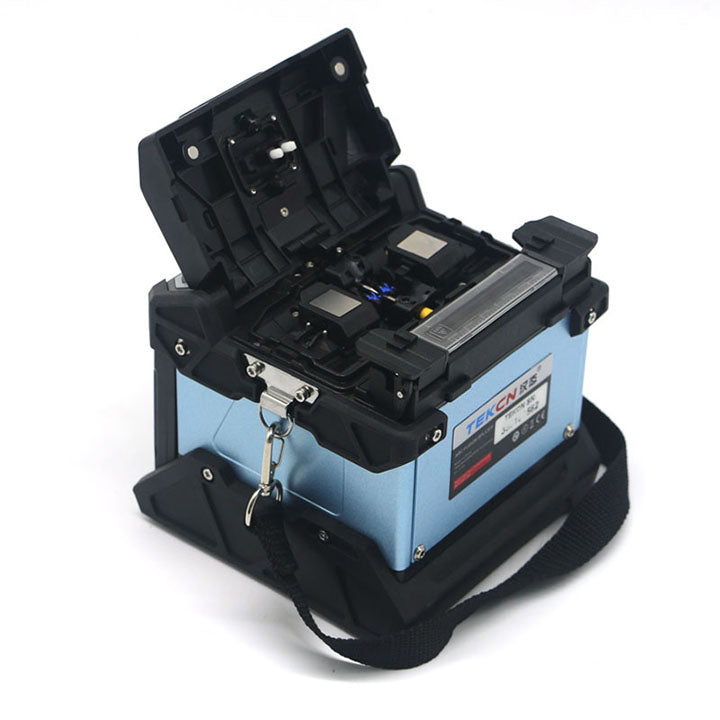

• 6-Motor Core Alignment: Six independent motors drive precise core-to-core fiber alignment, delivering more consistent 0.02dB SM splice loss than PAS alignment — especially on aged, mismatched, or specialty fiber

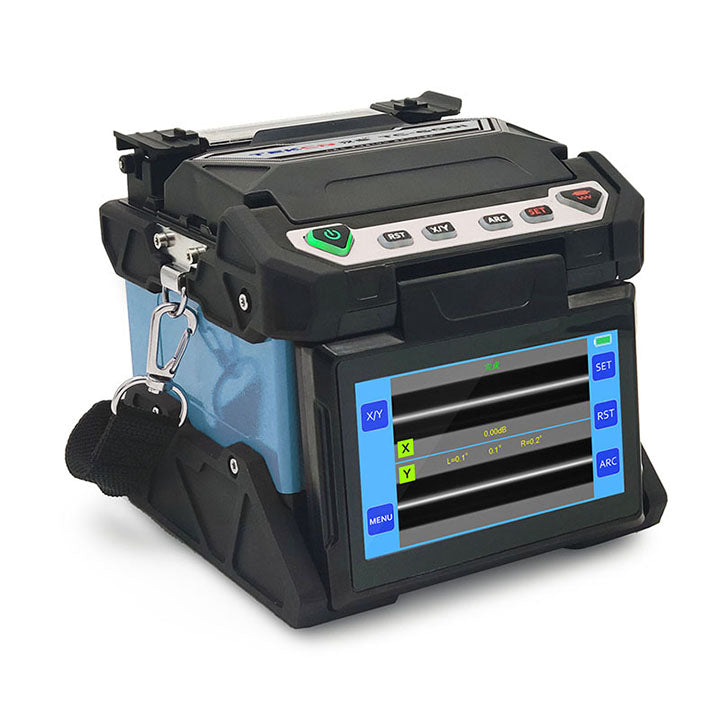

• 760X Maximum Magnification: Dual-axis CMOS camera with 4.3-inch full HD capacitive touchscreen supports X, Y, or simultaneous dual-axis view for the clearest fiber inspection
• Smart Anti-Counterfeit Electrodes: Intelligent electrode authentication prevents fake electrodes, protecting splice quality and ensuring consistent ARC performance across 5,000 splices
• GPS Tracking Option: Optional built-in GPS positioning and tracking via SIM card for equipment security on job sites
• New GPU System – Energy Saving: Advanced GPU processing reduces power consumption for longer battery life in the field
• Complete Accessory Kit: Includes fiber cleaver, single fiber stripper, folding stool, air-blowing ball, brush, knife, cooling tray, alcohol bottle, and more
• 20,000 Splice Record Storage: Stores up to 20,000 splice results and 800 images for comprehensive project documentation

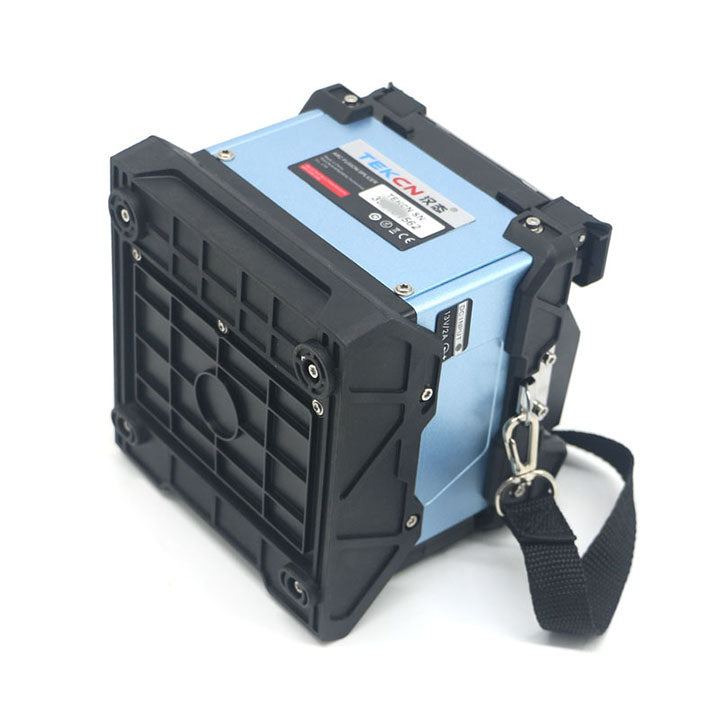

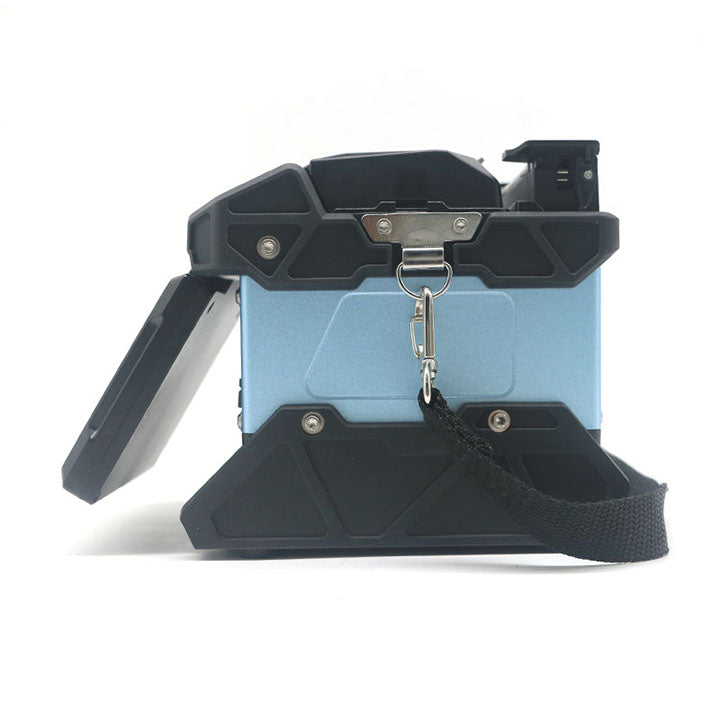

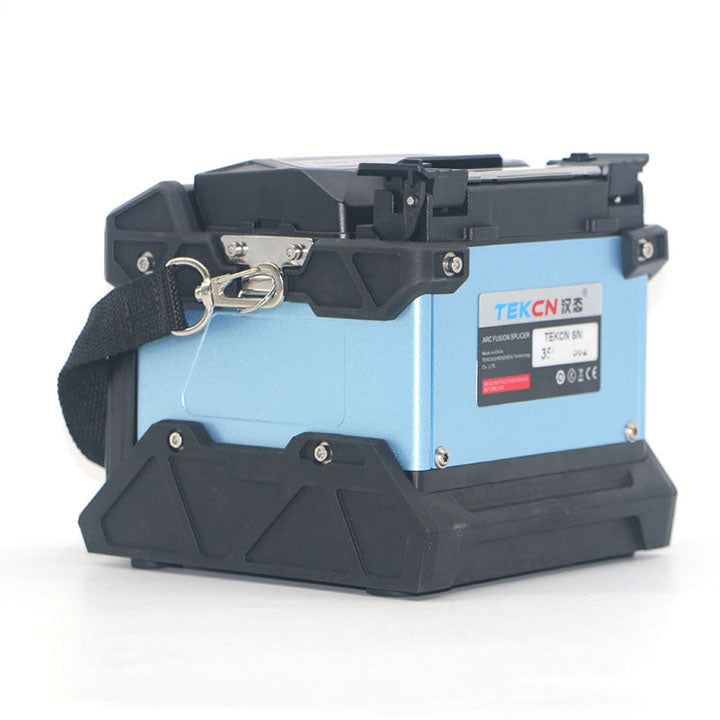

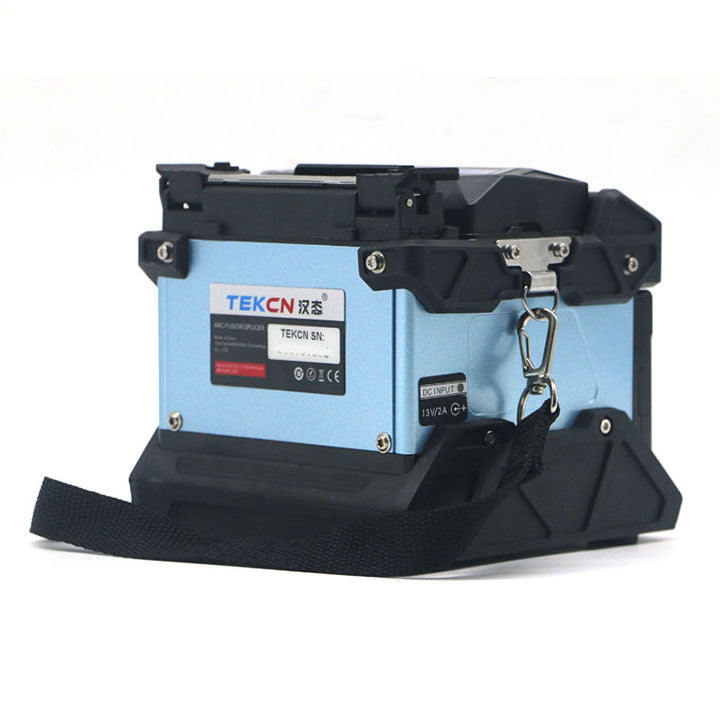

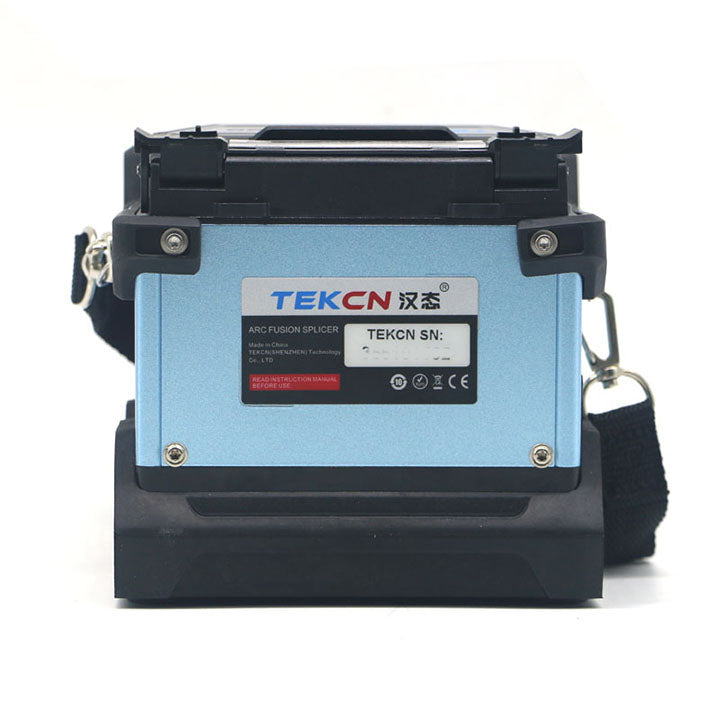

• Compact & Lightweight: 1.5kg body (1.8kg with battery) in a 133×144×133mm form factor

Ideal Applications

• Telecom backbone and metro network fiber splicing
• Enterprise and data center fiber cabling requiring consistent low-loss splices
• Projects with aged, mismatched, or non-standard fiber requiring precise core alignment
• FTTH / FTTx deployments where splice quality is mission-critical
• Field teams upgrading from PAS alignment to true core alignment

TC-600 vs. TC-400 – When to Upgrade to 6-Motor Core Alignment

Technical Specifications

Package Contents

• TEKCN TC-600 Fusion Splicer
• Fiber Cleaver
• Single Fiber Stripper
• Extra Electrodes
• AC Adapter
• Cooling Tray
• Carrying Case
• Shoulder Strap + Hand Strap
• Alcohol Bottle
• Air-Blowing Ball
• Brush + Knife
• Folding Stool

Frequently Asked Questions

Q: What is the difference between 6-motor core alignment (TC-600) and PAS alignment (TC-400)?
A: PAS (Profile Alignment System) aligns fibers by analyzing the outer cladding profile using image processing — it’s fast, reliable, and excellent for standard FTTx work. 6-motor core alignment uses six independent motors to directly align the fiber cores, providing more precise and consistent results, especially on aged fiber, mismatched fiber, or applications where every 0.01dB of splice loss matters. The TC-600 is the better choice for backbone, metro, and precision network applications.

Q: Does the TC-600 include a GPS tracker?
A: GPS is an optional feature on the TC-600, available via a built-in SIM card slot. When activated, it provides real-time positioning and tracking to protect your equipment on job sites. Contact us at info@cpostore.com to confirm GPS availability.

Q: Is the TC-600 worth the upgrade over the TC-400?
A: If you primarily do FTTx last-mile work with standard fiber, the TC-400’s PAS alignment is excellent and more cost-effective. If you work on backbone networks, metro fiber, enterprise cabling, or projects with non-standard fiber where splice loss consistency is critical, the TC-600’s 6-motor core alignment is worth the investment.

Q: What are the smart anti-counterfeit electrodes?
A: The TC-600 uses an intelligent electrode authentication system that verifies each electrode is a genuine TEKCN original. Counterfeit or incompatible electrodes are rejected, protecting splice quality and ensuring consistent ARC performance across the electrode’s 5,000-splice lifespan.

Q: What warranty does the TEKCN TC-600 come with?
A: The TC-600 comes with a 1-year manufacturer warranty. For support or bulk pricing, contact us at sales@cpostore.com.
