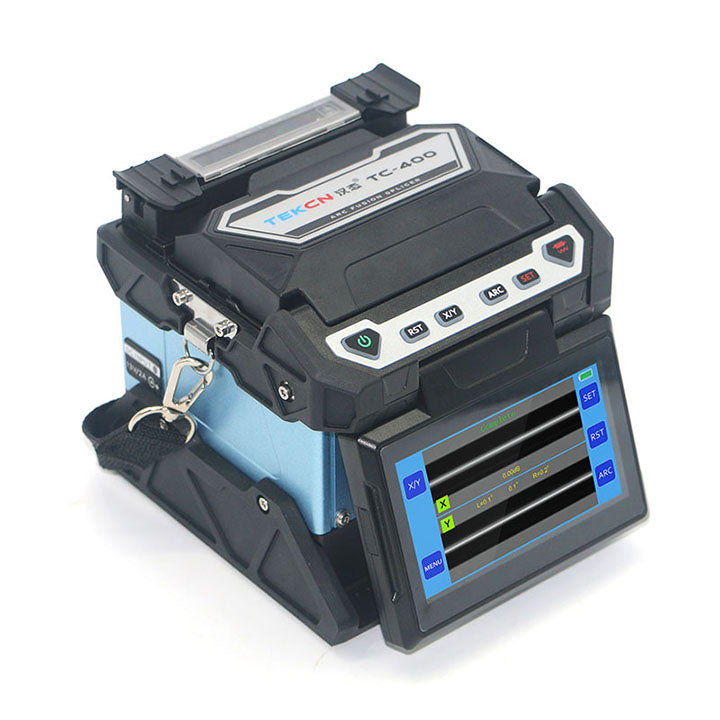

TEKCN TC-400 PAS Core Alignment Fusion Splicer | 760X, GPS, Anti-Counterfeit Electrodes

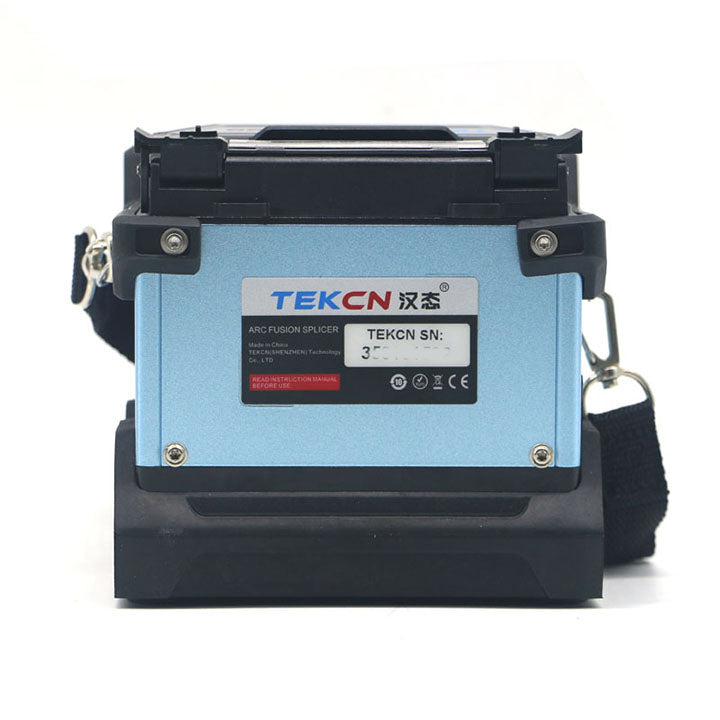

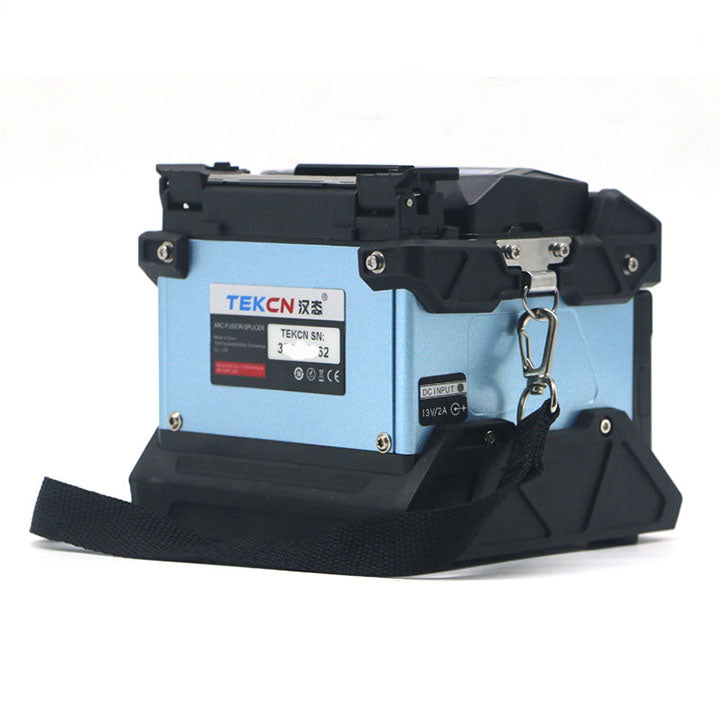

TEKCN TC-400 PAS Core Alignment Fusion Splicer – Maximum Value, Professional Performance

The TEKCN TC-400 is engineered around a simple promise: deliver the most value for your investment. With PAS core alignment, an impressive 760X magnification, smart anti-counterfeit electrodes, and an optional GPS tracking system, the TC-400 punches well above its price point. It comes with one of the most comprehensive accessory packages in its class — including a fiber cleaver, drop cable stripper, folding stool, and more — so you can start splicing the moment it arrives.

Why Choose the TEKCN TC-400?

• PAS Core Alignment: Profile Alignment System delivers consistent 0.02dB SM splice loss across all standard fiber types for reliable, professional-quality splices

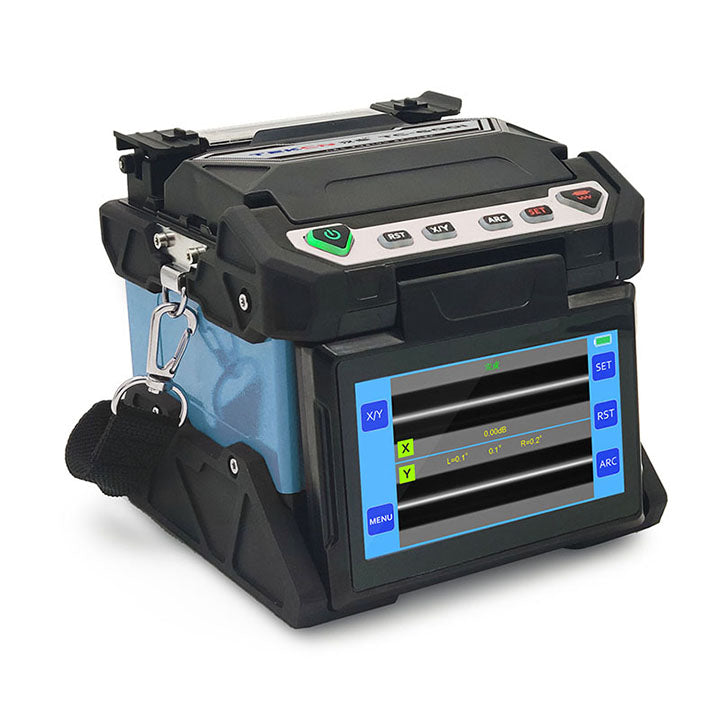

• 760X Maximum Magnification: Industry-leading zoom for the clearest possible fiber inspection — supports X, Y, or simultaneous dual-axis view on a 4.3-inch full HD capacitive touchscreen
• Smart Anti-Counterfeit Electrodes: Intelligent electrode authentication system prevents fake electrodes from being used, protecting splice quality and machine performance
• GPS Tracking Option: Optional built-in GPS positioning and tracking via SIM card for equipment security on job sites
• New GPU System – Energy Saving: Advanced GPU processing reduces power consumption for longer battery life in the field
• Most Complete Accessory Kit: Includes fiber cleaver, single fiber stripper, drop cable stripper, folding stool, air-blowing ball, brush, knife, cooling tray, alcohol bottle, and more
• 20,000 Splice Record Storage: Stores up to 20,000 splice results and 800 images for comprehensive project documentation
• Lightweight & Compact: 1.5kg body (1.8kg with battery) in a 133×144×133mm form factor for easy field use

Ideal Applications

• FTTH / FTTx last-mile fiber deployment
• Telecom access network construction and maintenance
• Enterprise fiber cabling projects
• Field teams requiring complete all-in-one splice kits
• Projects requiring GPS equipment tracking for security

TC-400 vs. TC-400i – Which TEKCN Is Right for You?

Technical Specifications

Package Contents

• TEKCN TC-400 Fusion Splicer
• Fiber Cleaver
• Single Fiber Stripper
• Drop Cable Stripper
• Extra Electrodes
• AC Adapter
• Cooling Tray
• Carrying Case
• Shoulder Strap + Hand Strap
• Alcohol Bottle
• Air-Blowing Ball
• Brush + Knife
• Folding Stool

Frequently Asked Questions

Q: What are the smart anti-counterfeit electrodes on the TC-400?
A: The TC-400 uses an intelligent electrode authentication system that verifies each electrode is a genuine TEKCN original. If a counterfeit or incompatible electrode is detected, the machine will alert the user. This protects splice quality and ensures consistent ARC performance throughout the electrode’s 5,000-splice lifespan.

Q: Does the TC-400 include a GPS tracker?
A: GPS is an optional feature on the TC-400, available via a built-in SIM card slot. When activated, it provides real-time positioning and tracking to protect your equipment on job sites. Contact us at info@cpostore.com to confirm GPS availability and configuration.

Q: What is the difference between the TC-400 and TC-400i?
A: The TC-400 features a faster 6-second splice time, a more complete accessory kit (including a folding stool), and PAS core alignment. The TC-400i offers a faster 9-second heating time (vs. 16 seconds), a larger 4.73-inch display, and slightly more battery cycles (250 vs. 220). Choose the TC-400 for faster splicing and a complete kit; choose the TC-400i for faster heating and a bigger screen.

Q: What fiber types does the TC-400 support?
A: The TC-400 supports SM (G.652/G.657), MM (G.651), DS (G.653), NZDSF (G.655), and BI (G.657) — covering all standard fiber types used in FTTx and telecom network deployments.

Q: What warranty does the TEKCN TC-400 come with?
A: The TC-400 comes with a 1-year manufacturer warranty. For support or bulk pricing, contact us at sales@cpostore.com.
