Fiber Optic Inspection & Cleaning Kit – 400x Probe with Display + One-Click Cleaner Pen + Connector Cleaning Cassette

Fiber Optic Inspection & Cleaning Kit – 250x Fiber Inspection Probe with 3.5" Display + One-Click Cleaner Pen + Connector Cleaning Cassette

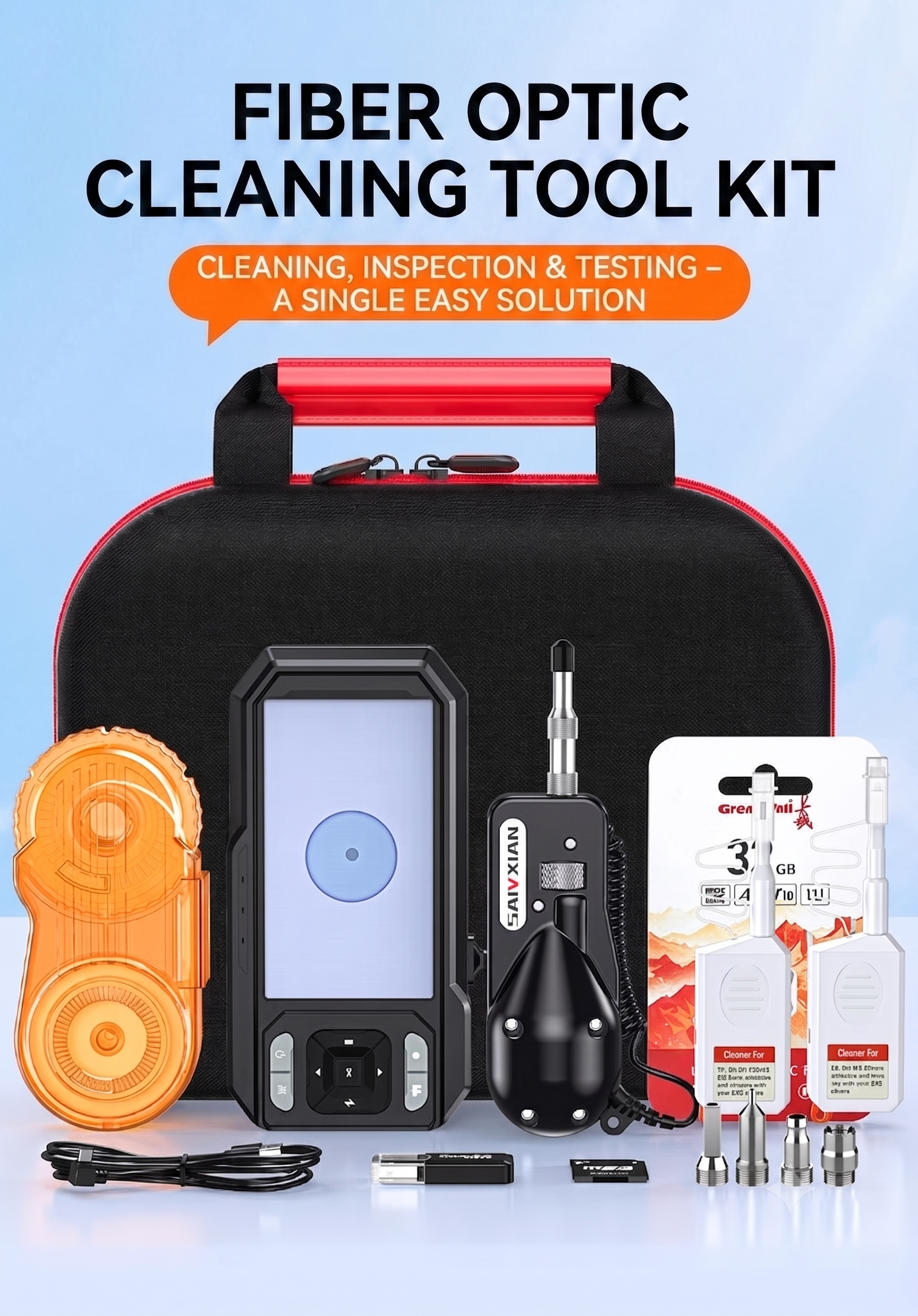

This 3-in-1 fiber optic inspection and cleaning kit combines the three essential tools for fiber connector end-face inspection and cleaning into a single, field-ready package: a handheld fiber inspection probe with a built-in 3.5" color display, a one-click fiber optic cleaner pen (800+ cleanings), and a fiber connector cleaning cassette (500 cleanings). Together, these tools support the complete Inspect → Clean → Re-Inspect workflow required by IEC 61300-3-35 and IEC 61300-3-36 fiber connector cleanliness standards.

Contaminated fiber connectors are the leading cause of high insertion loss, back-reflection, and intermittent link failures in fiber optic networks. A single contaminated connector end-face can degrade an entire fiber link — this kit gives field technicians everything needed to identify and eliminate contamination on site, without returning to a service centre.

Kit Contents – What’s Included

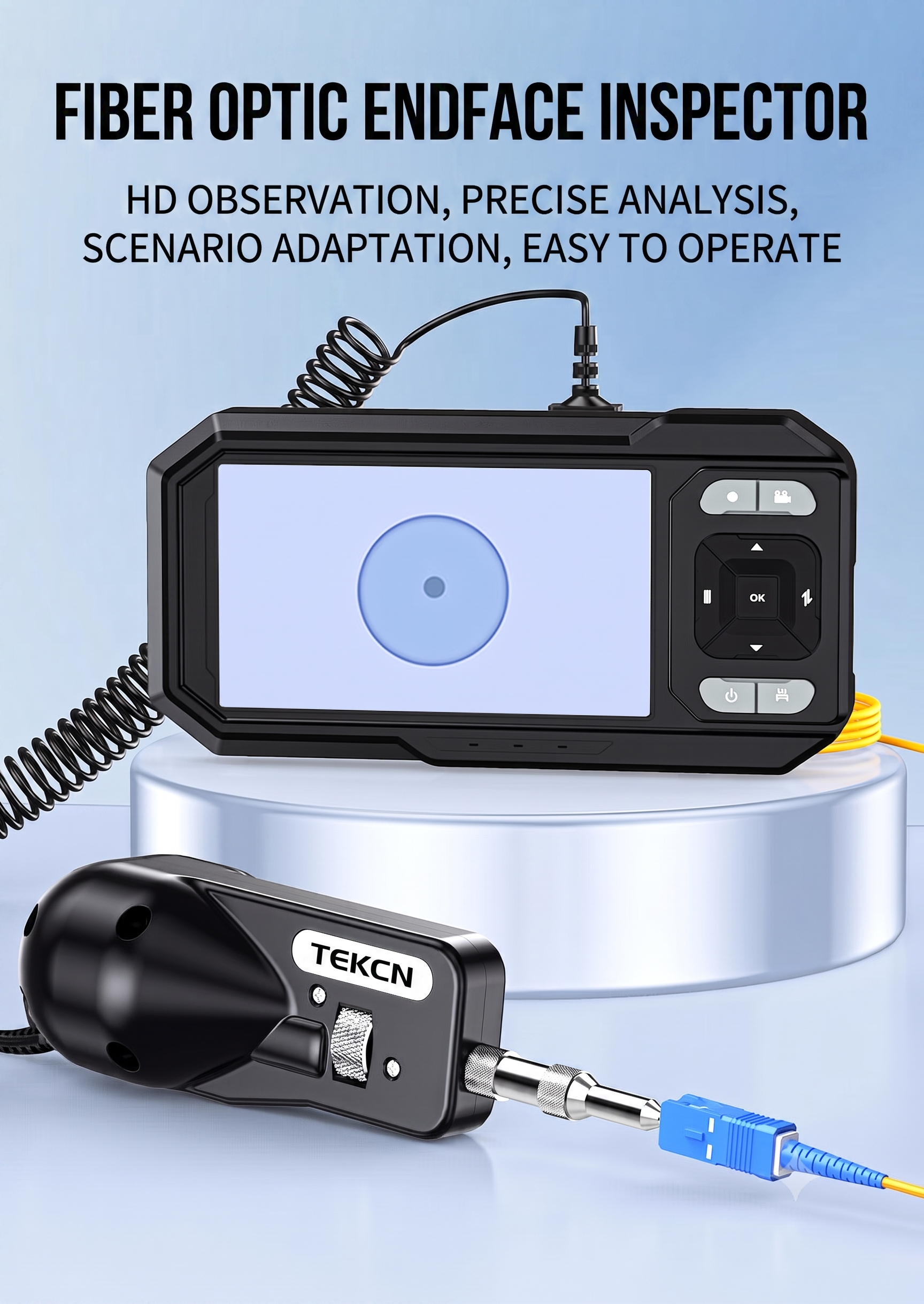

Component 1: Fiber Inspection Probe with 3.5" Display

The handheld fiber inspection probe is a video microscope that magnifies fiber connector end-faces up to 250x on the built-in 3.5" display (or 400x on an external 9" monitor), allowing technicians to visually inspect connector end-faces for contamination, scratches, chips, and core damage before and after cleaning.

Key Features

• 400x Magnification on built-in 3.5" display (400x on external 9" monitor)
• 4x Digital Zoom for detailed end-face inspection
• 0.5µm Detection Limit — resolves contamination particles as small as 0.5 microns
• Image Capture & Storage on 8GB SD card — document connector condition before and after cleaning
• Instant Video Recording for inspection documentation and reporting
• USB Plug-and-Play — connect to a PC to transfer images and video
• Standard Tips Included: SC, FC, ST, LC, MU, E2000 — covers the most common connector types in FTTH, telecom, and enterprise fiber networks
• Bright Field Reflected Light Microscopy — industry-standard inspection principle for fiber end-face analysis

Full Specifications

Component 2: One-Click Fiber Optic Cleaner Pen

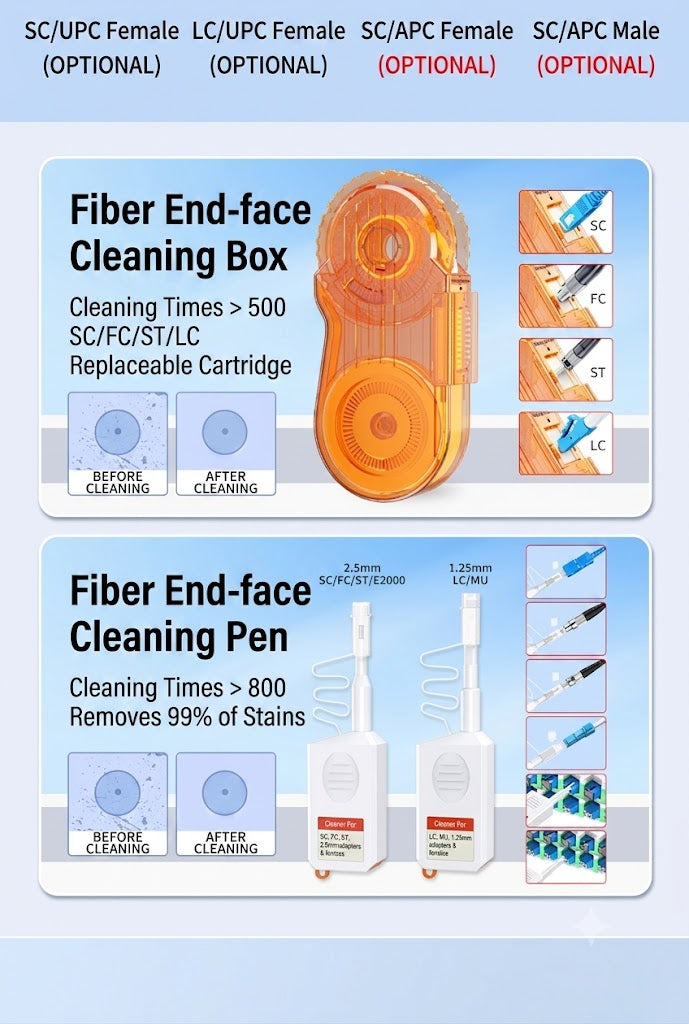

The one-click fiber optic cleaner pen provides fast, dry cleaning of 2.5mm fiber connector end-faces (SC, FC, ST) with a single push motion. Each pen provides 800+ cleanings — the most cost-effective method for routine connector end-face cleaning in the field.

• 800+ Cleanings Per Pen — long service life for high-volume field use
• One-Click Operation — push motion engages the connector and initiates the cleaning cycle automatically
• Antistatic Resin Housing — prevents static charge buildup that can attract contamination back to the cleaned end-face
• Densely Stranded Microfiber Cleaning Element — debris-free cleaning without leaving residue or lint on the end-face
• Extendable Tip — reaches recessed connectors in bulkhead adapters and patch panels
• Compatible with 2.5mm Connectors: SC, FC, ST

Component 3: Fiber Connector Cleaning Cassette

The fiber connector cleaning cassette provides reel-based dry cleaning for a wide range of connector types, including MPO/MTP multi-fiber connectors that cannot be cleaned with a standard cleaner pen. Each cassette provides 500 cleanings before the cleaning tape reel requires replacement.

The Inspect → Clean → Re-Inspect Workflow

1. Inspect: Use the fiber inspection probe to examine the connector end-face at 250x magnification — identify contamination, scratches, or damage
2. Clean: If contaminated, clean with the one-click cleaner pen (SC/FC/ST male connectors) or the cleaning cassette (all connector types including MPO)
3. Re-Inspect: Re-inspect the end-face with the probe to confirm contamination has been removed before mating the connector
4. Document: Capture and store end-face images on the 8GB SD card for inspection records and project documentation

Ideal Applications

• FTTH / FTTx installation and commissioning — inspect and clean SC/APC and SC/UPC connectors at OLT, splitter, and ONT connection points before activation
• Telecom OSP and central office fiber maintenance — routine connector inspection and cleaning in patch panels, ODF frames, and splice enclosures
• Data center fiber infrastructure — inspection and cleaning of LC, SC, and MPO/MTP connectors in high-density patch panels and active equipment ports
• Enterprise structured cabling — fiber connector inspection and cleaning during installation, moves, adds, and changes
• Fiber optic troubleshooting — connector end-face inspection as the first step in diagnosing high insertion loss or intermittent link failures

Frequently Asked Questions

Q: What is included in this fiber optic inspection and cleaning kit?
A: The kit includes a handheld fiber inspection probe with 3.5" TFT display (400x magnification, 8GB SD card, image & video storage), a one-click fiber optic cleaner pen (800+ cleanings, 2.5mm), a connector cleaning cassette (500 cleanings, SC/FC/ST/LC/MPO/MT/MTRJ), inspection tips for SC, FC, LC, and female bulkhead connectors, AC adapter, rechargeable battery, and carrying bag.

Q: What connector types can this kit inspect and clean?
A: The inspection probe includes tips for SC, FC, ST, LC, MU, and E2000 connectors (male and female/bulkhead). The cleaning cassette supports SC, FC, ST, MU, LC, MPO, MT, and MTRJ. The cleaner pen supports 2.5mm connectors (SC, FC, ST).

Q: What magnification does the fiber inspection probe provide?
A: 250x on the built-in 3.5" display with 4x digital zoom. When connected to an external 9" monitor, optical magnification is 400x.

Q: Can this probe inspect MPO / MTP connectors?
A: The standard kit includes tips for SC, FC, LC, and female bulkhead connectors. MPO/MTP inspection requires a dedicated MPO tip — please contact us to confirm MPO tip availability for this probe model.

Q: How many cleanings does the cleaner pen provide?
A: 800+ cleanings per pen. It is a disposable consumable — replace when the cleaning element is exhausted.

Q: How many cleanings does the cleaning cassette provide?
A: 500 cleanings per cassette. The cleaning tape reel can be replaced with the ATC-NE-NS replacement reel (10 reels/set) without replacing the cassette body.

Q: Can I save inspection images from the probe?
A: Yes. The probe stores images and video on an included 8GB SD card, transferable to a PC via USB plug-and-play.

Q: What is the battery life of the inspection probe?
A: The rechargeable Li-Ion battery (3.7V / 1450mAh) provides more than 3 hours of continuous use. The probe can also be powered directly from the AC adapter.

Q: For support or bulk orders?
A: Contact us at info@cpostore.com for B2B pricing, volume orders, or technical support.

Package Contents

• Fiber Inspection Probe ×1
• Mainframe / Display Unit ×1
• One-Click Fiber Optic Cleaner Pen (2.5mm) ×1
• Connector Cleaning Cassette ×1
• AC Power Adapter / Battery Charger ×1
• Rechargeable Li-Ion Battery Pack ×1
• 2.5mm Tip for PC Male Connectors ×1
• 1.25mm Tip for PC Male Connectors ×1
• Tip for SC / FC PC Female Connectors ×1
• Tip for LC PC Female Connectors ×1
• Tip Box ×1
• User Manual ×1
• Carrying Bag ×1
