Compact & Light weight
Applied for Fibers, Cables and SOC (splice- on connector)
Integrated Holder Design
Fully Automatic, Semi-automatic and Manual Operation
Shockproof, Drop resistance
Power saving Function
4.3 inch Color LCD monitor
USB&DC interface
|
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector. |
|
Fiber cleaved length |
8-22mm |
|
Average splice loss |
0.02dB(SM)、0.01dB(MM)、0.04dB(DS)、0.04dB(NZDS) |
|
Return loss |
≥60dB |
|
Tension test |
2.0N(200gf)(Standard) |
|
Protection sleeve length |
20mm, 40mm, 60mm |
|
Splice Program |
5 groups of preset programs, 75 group of manual setting |
|
Language |
English, Chinese, Russian, Spanish, Portuguese. |
|
Environment conditions |
-25～＋50℃ (operation temperature), 0～95%RH (humidity), 0～5000m (altitude) |
|
Storage environment |
-40～ +80℃ (temperature) , 0～95％RH (humidity) |
|
Power supply |
AC adaptor： 85～260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
|
Dimensions/Weight |
142（D）×122（W）×138（H）mm/1.95kg |

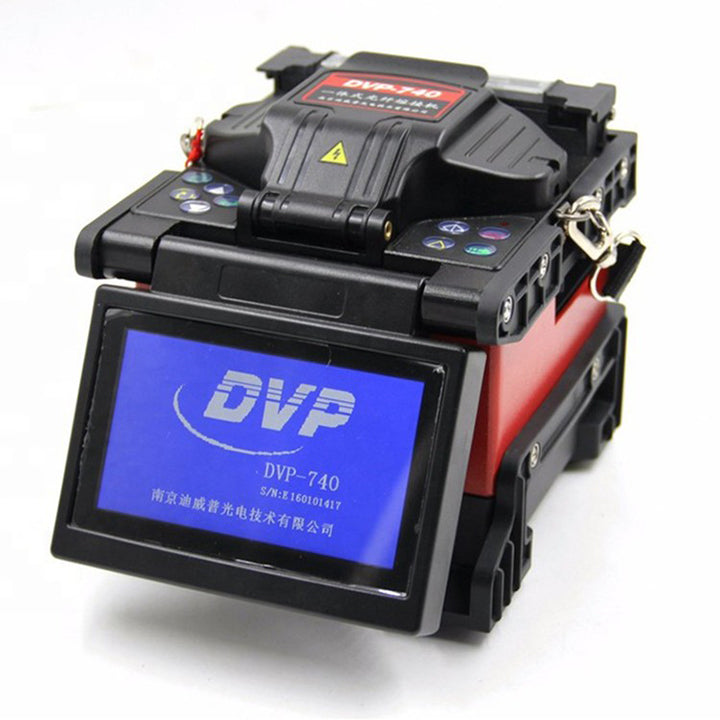

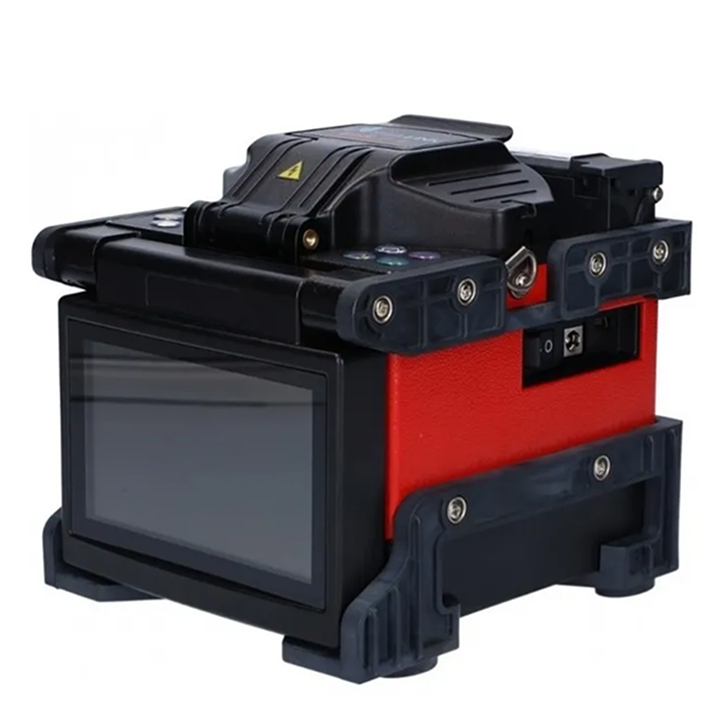

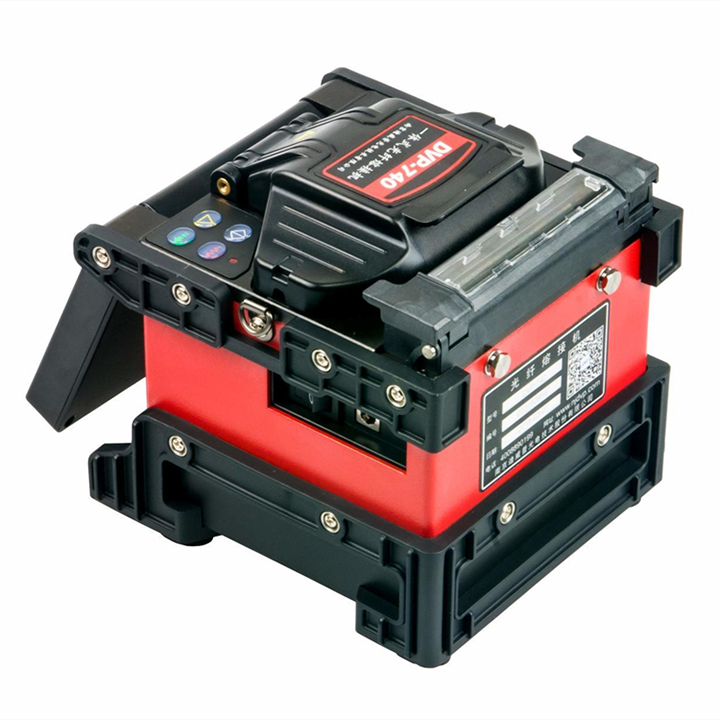

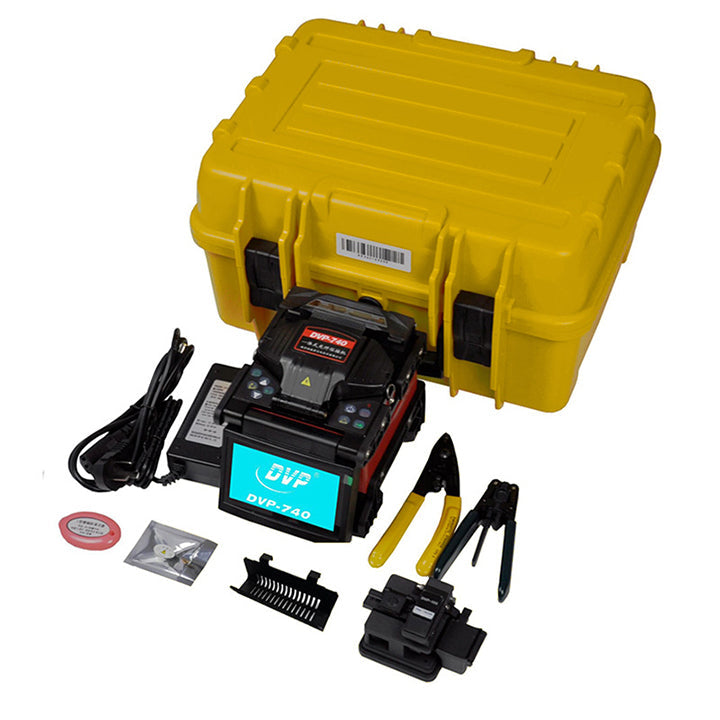

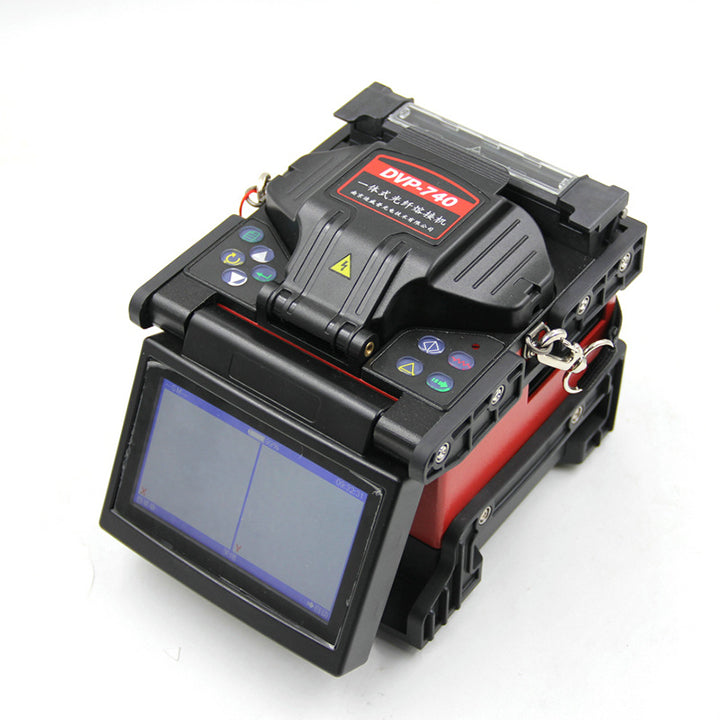

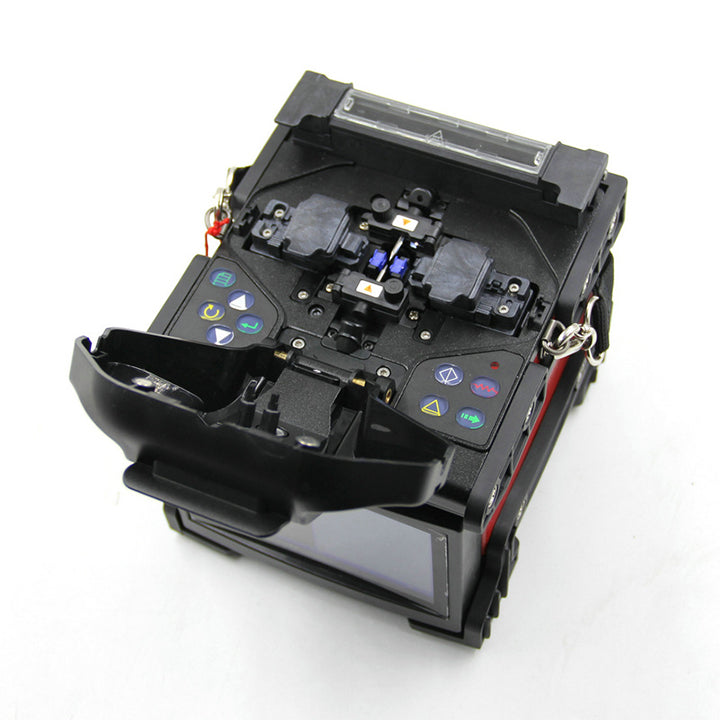

Fusion Splicer DVP-740 | Fiber Cleaver | Electrodes
Charger | Drop Cable Stripper | Stripper | SOC Holder
Cooling Tray | Operation Case | User Manual
