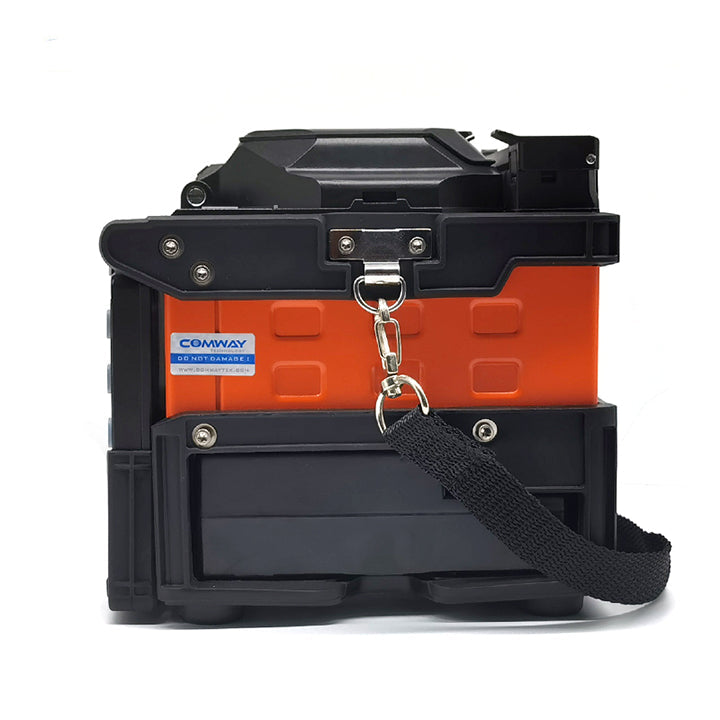

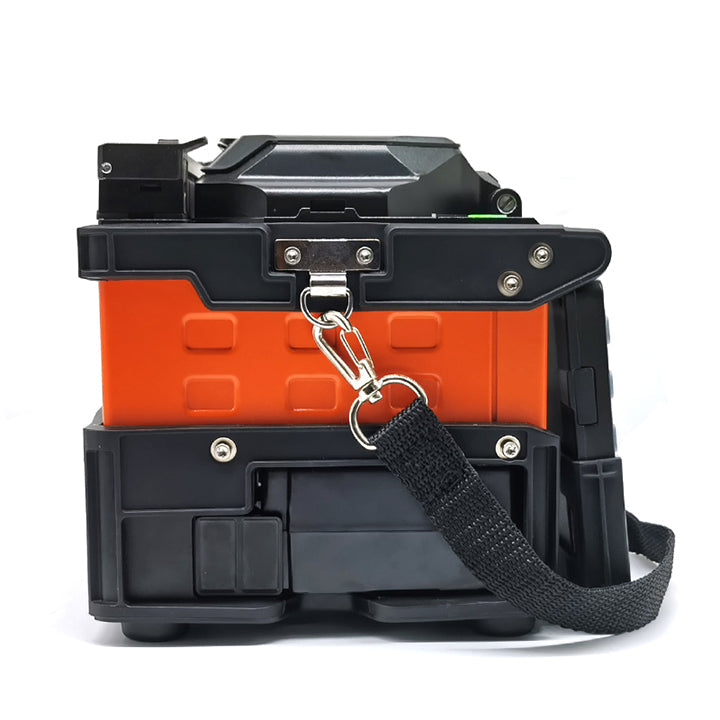

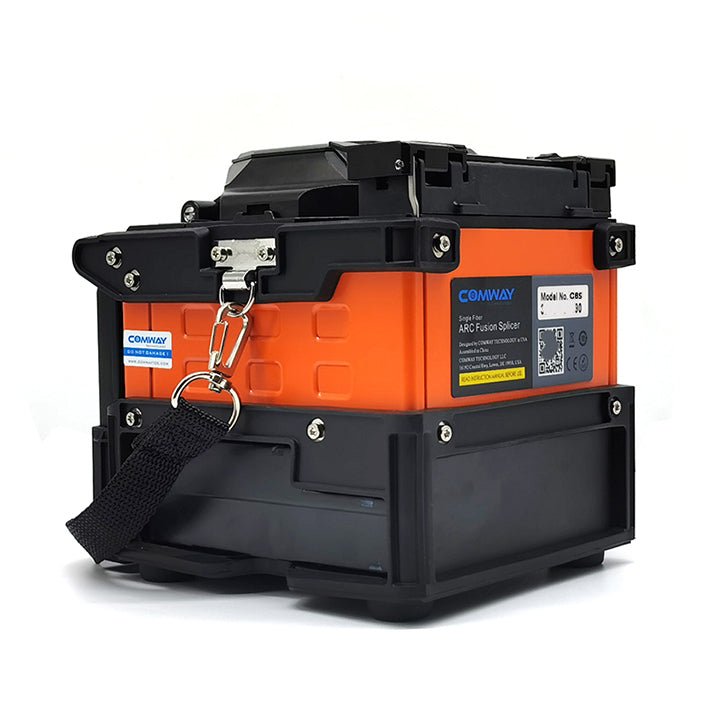

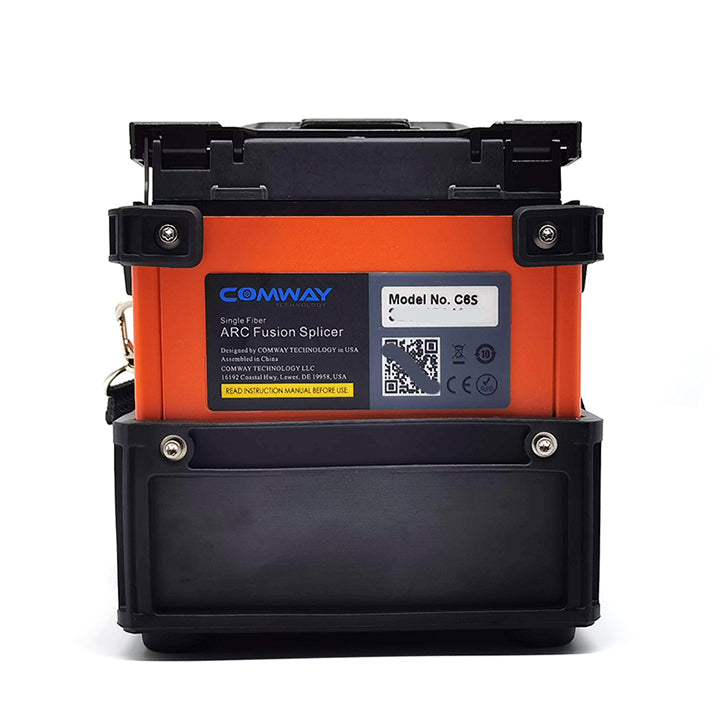

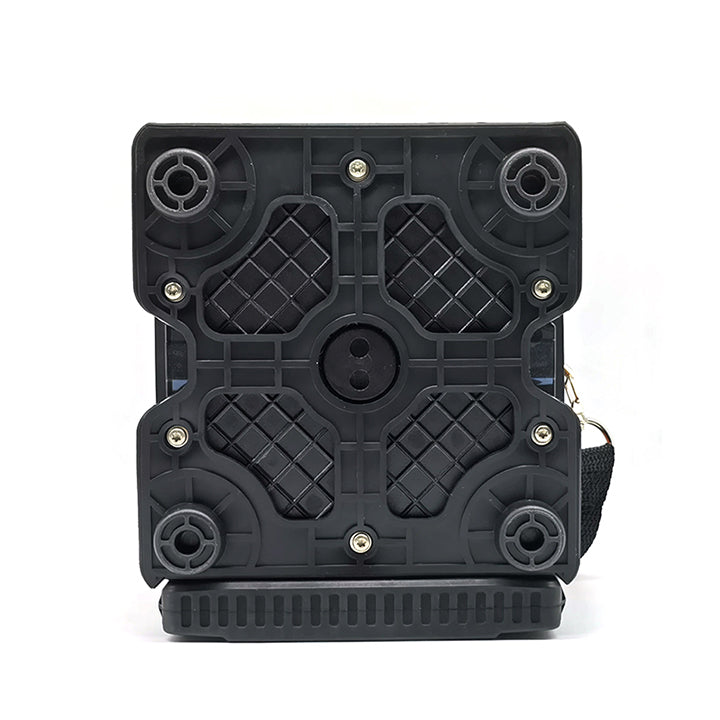

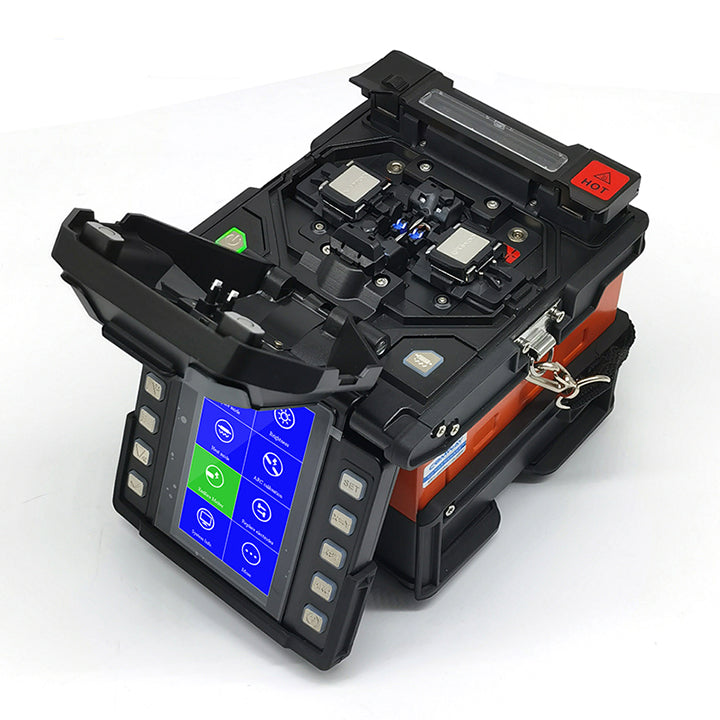

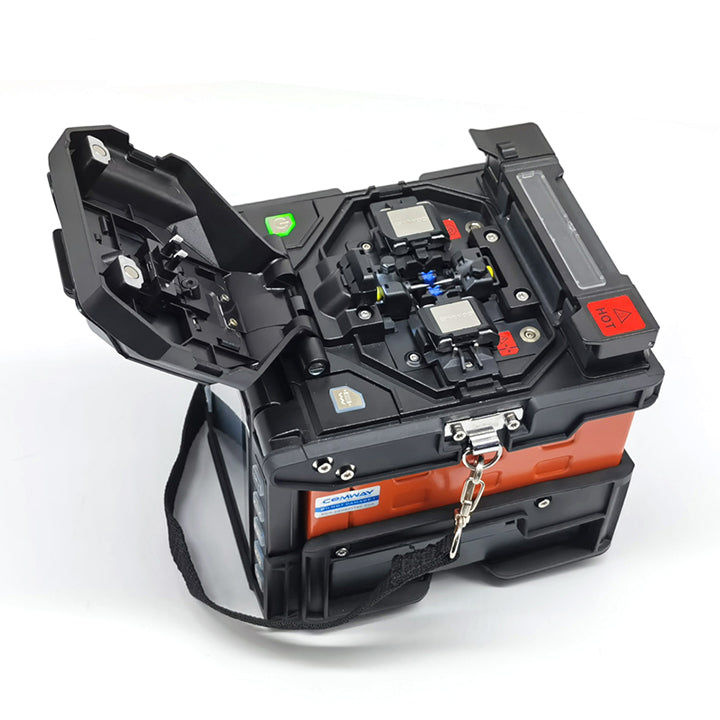

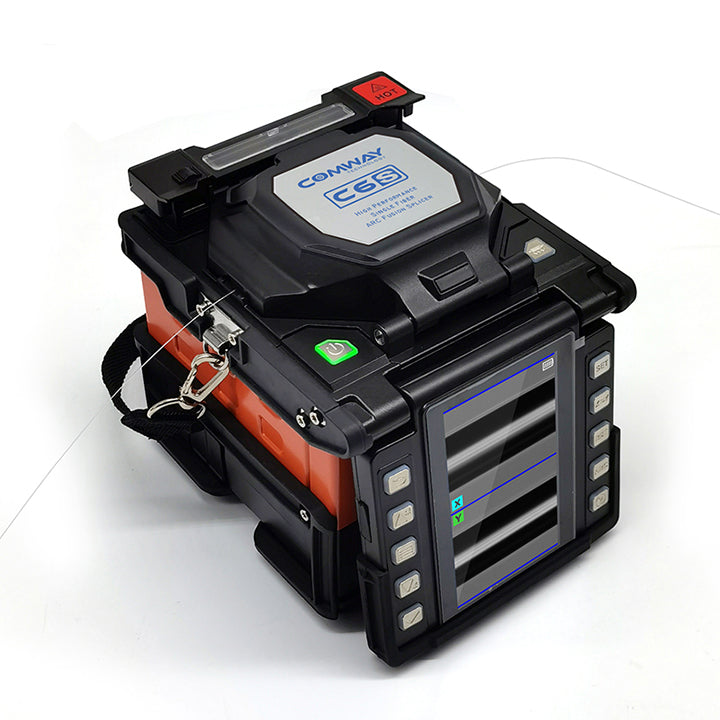

The COMWAY C6S is a professional FTTx-optimized fusion splicer featuring PAS (Profile Alignment System) high-precision alignment technology. Designed specifically for FTTH, FTTB, and FTTC last-mile deployments, the C6S delivers fast, reliable splices with 750X magnification and a rugged field-ready build — all at a price point that makes it the go-to choice for FTTx contractors and telecom installers.
| Feature | C6S (PAS) | C10S (Core Alignment) |
|---|---|---|
| Alignment Method | PAS (Profile Alignment) | 6-Motor Core Alignment |
| Best For | FTTx / last-mile deployment | Backbone / 5G / high-precision |
| Drop Cable Stripper | Included | Not included |
| G.654E Support | No | Yes |
| Splice Loss (SM) | 0.02dB | 0.02dB |
| Splice Time | 5 sec | 5 sec |
| Battery | 5600mAh | 5600mAh |
| Price Point | More affordable | Premium |
| Parameter | Specification |
|---|---|
| Fiber Alignment | High Precision PAS (Profile Alignment System) |
| Fiber Types | SM (G.652), MM (G.651), DS (G.653), NZ/NZDS (G.655), BI (G.657) |
| Splice Loss | SM: 0.02dB | MM: 0.01dB | DS: 0.04dB | NZ/NZDS: 0.04dB | BI: 0.02dB |
| Splice Time | 5 sec (SM Fast) / 10 sec (SM G652) |
| Heating Time | 8 sec (micro sleeves) / 12 sec (slim 60/40mm) |
| Fiber Magnification | 750X single axis (zoom) / 300X dual axis |

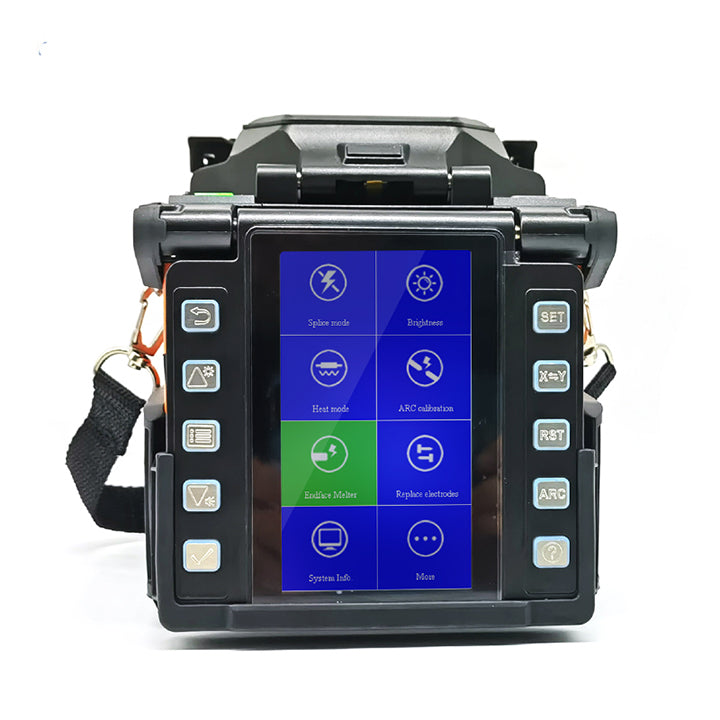

| Display | 4.3-inch high-resolution display |
| Battery | 5600mAh, 350+ splice & heat cycles |
| Splice Programs | Max. 200 splice / 30 heating programs |
| Data Storage | Max. 20,000 splice records + 800 images |
| Fiber Diameter | Cladding: 80–150μm | Coating: 100–3000μm |
| Operating Conditions | -10°C to +50°C | 0–95% humidity | 0–5000m altitude | Wind up to 15m/s |
| Dimensions & Weight | 156 × 135 × 149mm | 2.0kg (2.5kg with battery) |
| Protection | Waterproof, Dust-proof, Anti-shock |
| Optional Features | GPS Tracking |
| Electrode Life | 5,000 ARC discharges |
| Warranty | 1 Year |
Q: What is PAS alignment and how does it differ from core alignment?
A: PAS (Profile Alignment System) aligns fibers by analyzing the outer profile/cladding of the fiber using image processing. Core alignment directly aligns the fiber cores. PAS is highly effective for standard FTTx fiber types and offers excellent splice loss (0.02dB SM), while core alignment is preferred for specialized or high-precision backbone applications.
Q: Why does the C6S include a Drop Cable Stripper?
A: The C6S is specifically designed for FTTx deployments where drop cables (flat or figure-8 cables used for residential connections) are commonly used. The included Drop Cable Stripper makes it a complete solution for FTTH installers without needing additional tools.
Q: What fiber types does the COMWAY C6S support?
A: The C6S supports SM (G.652), MM (G.651), DS (G.653), NZ/NZDS (G.655), and BI (G.657) — covering all standard fiber types used in FTTx and access network deployments.
Q: Should I choose the C6S or the C10S?
A: Choose the C6S if you primarily do FTTx/FTTH last-mile work and need a cost-effective, reliable splicer with drop cable support. Choose the C10S if you work on backbone networks, 5G infrastructure, or require 6-motor core alignment for the highest precision and G.654E fiber support.
Q: What warranty does the COMWAY C6S come with?
A: The C6S comes with a 2-year manufacturer warranty. Contact us at sales@cpostore.com for support.
