TEKCN EC-10 Fusion Splicer Electrodes – OEM Spare Electrodes for TEKCN TC-400 & TC-600 Splicing Machines

The TEKCN EC-10 is the OEM-specified spare electrode set for the TEKCN TC-400 and TC-600 arc fusion splicers. Electrodes are the most critical consumable in arc fusion splicing — they generate the high-voltage electric arc that melts and fuses fiber end-faces together. Over time, tungsten electrodes oxidize and erode, causing inconsistent arc discharge, increased splice loss, and splice failures. Replacing worn electrodes with genuine TEKCN EC-10 electrodes restores arc stability and returns splice quality to factory specification.

Compatible TEKCN Fusion Splicer Models

If you are unsure whether the EC-10 is compatible with your specific TEKCN splicer model, please contact us before ordering to confirm compatibility.

Key Specifications

Why Electrode Replacement Matters for Splice Quality

Fusion splicer electrodes are tungsten rods that generate the electric arc used to melt and fuse fiber end-faces. They are a consumable item with a finite service life. As electrodes age, they develop:

• Tungsten oxide deposits: Oxidation on the electrode tips creates irregular arc discharge, causing asymmetric heating of the fiber end-faces and increased splice loss
• Electrode tip erosion: The electrode tips gradually erode, changing the arc gap and discharge characteristics — the splicer’s arc calibration can compensate for minor wear, but cannot correct severely eroded electrodes
• Contamination buildup: Silica vapor from the fusion process deposits on electrode surfaces, further disrupting arc stability
• Increased splice loss and failures: Worn electrodes produce inconsistent arcs that result in higher average splice loss, more splice failures, and increased re-splice rates

Replacing electrodes at the recommended interval — or when the splicer prompts an electrode replacement warning — restores arc stability and returns splice loss to the splicer’s specified performance level.

Signs Your TEKCN TC-400 or TC-600 Needs New Electrodes

• The splicer displays an electrode replacement warning or electrode count alert
• Splice loss is increasing on fiber types that previously spliced consistently within specification
• Arc discharge is visibly asymmetric or unstable during the fusion cycle
• Splice failures, bubble defects, or fat splices are occurring more frequently
• The splicer’s arc calibration (arc check) is failing or requiring repeated re-calibration
• Visible white tungsten oxide deposits on the electrode tips when inspected through the splicer’s camera

How to Replace Electrodes on a TEKCN TC-400 or TC-600

1. Power off the splicer and allow it to cool if recently used
2. Open the wind protector and locate the electrode holders on both sides of the V-groove
3. Remove the old EC-10 electrodes from the electrode holders
4. Insert the new EC-10 electrodes, ensuring correct seating and protrusion length in the electrode holders
5. Close the wind protector and power on the splicer
6. Run the arc calibration (arc check) from the splicer’s maintenance menu to calibrate the new electrodes
7. Perform a test splice to verify splice loss is within specification before resuming production splicing

Always follow the electrode replacement procedure in your TEKCN TC-400 or TC-600 user manual for your specific model.

About the TEKCN TC-400 and TC-600 Fusion Splicers

The TEKCN TC-400 and TC-600 are arc fusion splicers designed for FTTH installation, telecom OSP fiber splicing, and field fiber maintenance. The EC-10 electrode set is the OEM-specified consumable for maintaining arc performance in these splicers — using the correct OEM electrode ensures proper arc gap, discharge characteristics, and compatibility with the splicer’s arc calibration system.

Ideal Applications

• FTTH / FTTx network construction — maintaining consistent low-loss splices during high-volume fiber deployment with TEKCN TC-400 or TC-600 splicers
• Telecom OSP fiber splicing — aerial, underground, and in-building fiber splicing maintenance
• Fiber optic maintenance and repair — restoring splicer arc performance after electrode wear or damage
• Preventive maintenance programs — scheduled electrode replacement to maintain consistent splice quality across field teams

Frequently Asked Questions

Q: What is the TEKCN EC-10?
A: The TEKCN EC-10 is the OEM-specified spare electrode set for the TEKCN TC-400 and TC-600 arc fusion splicers. Each package contains one pair (2 electrodes). Electrodes are a consumable item that must be replaced periodically to maintain arc stability and splice quality.

Q: Which TEKCN splicer models use the EC-10 electrodes?
A: The EC-10 is compatible with the TEKCN TC-400 and TC-600 fusion splicers. If your TEKCN splicer model is not listed, please contact us to confirm compatibility before ordering.

Q: How often should I replace the EC-10 electrodes?
A: Replace electrodes when the splicer displays an electrode replacement warning, when splice loss increases unexpectedly, or when arc discharge becomes visibly unstable. Always replace both electrodes at the same time to ensure symmetric arc discharge.

Q: Do I need to calibrate the splicer after replacing electrodes?
A: Yes. After installing new EC-10 electrodes, always run the splicer’s arc calibration (arc check) procedure before resuming splicing. This calibrates the arc power and timing for the new electrodes and ensures splice loss returns to specification.

Q: Should I replace both electrodes at the same time?
A: Yes. Always replace both electrodes as a pair. Replacing only one electrode creates an asymmetric arc discharge — one new electrode and one worn electrode will produce uneven heating of the fiber end-faces, resulting in higher splice loss and potential splice failures.

Q: Are these genuine TEKCN OEM electrodes?
A: Yes. The EC-10 is the OEM-specified electrode part number for the TEKCN TC-400 and TC-600 fusion splicers, ensuring correct electrode geometry, arc gap, and discharge characteristics.

Q: How many electrodes come in one EC-10 package?
A: Each EC-10 package contains one pair (2 electrodes). For bulk or B2B orders, contact us at info@cpostore.com for volume pricing.

Package Contents

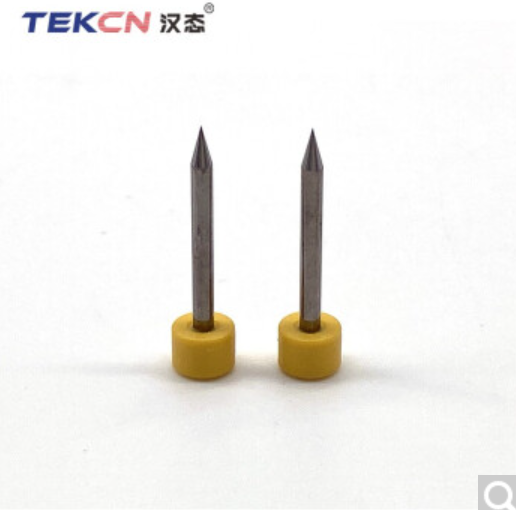

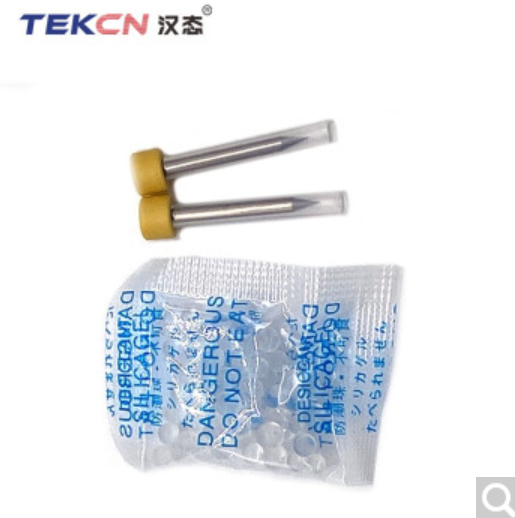

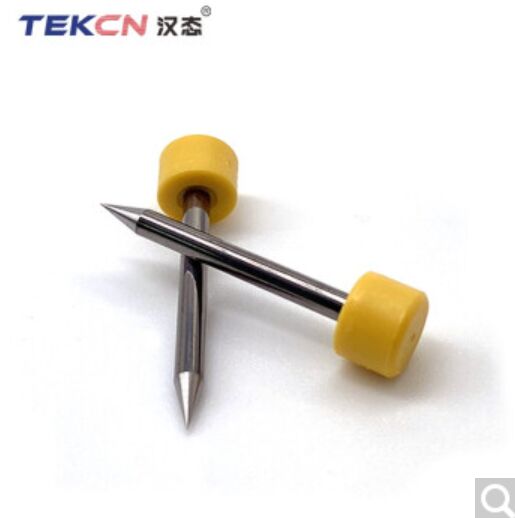

• TEKCN EC-10 Electrode Pair (2 electrodes) ×1 set
